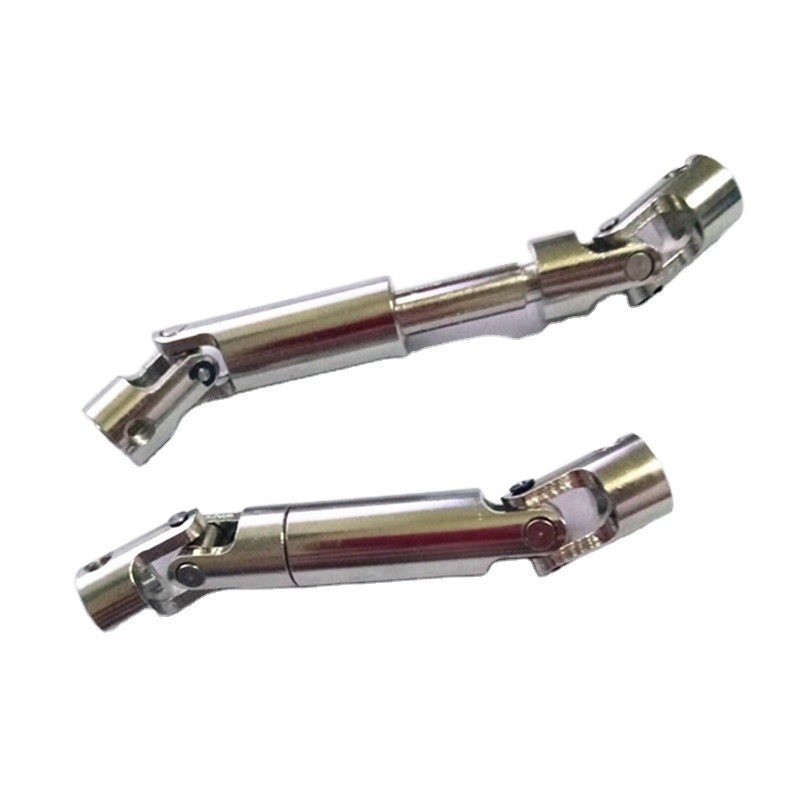

OEM Small U Joint Flexible Propeller Shaft Coupling Customized

Place of Origin	cangzhou、china
Brand Name	jude
Certification	CE、ISO

Product Details

Applicable Industries:

Manufacturing Plant, Machinery Repair Shops, Construction Works , Energy & Mining, Advertising Company

Customized Support:

OEM

Structure:

Universal

Flexible Or Rigid:

Flexible

Standard Or Nonstandard:

Standard

Material:

Steel

Type:

Telescopic

Name:

WSS Small Universal Joint Shaft Coupling

Body Material:

45# Steel

Application:

Industrial Equipment

Product Name:

Custom Made Small Universal Joint Propeller Shaft Coupling

Color:

Silver White

Size:

Customized Size

Feature:

Long Operating Life

Packing:

Wooden Box

MOQ:

1 Set

Port:

Tianjin

High Light:

Small Flexible Propeller Shaft Coupling

OEM Flexible Propeller Shaft Coupling

Customized U Joint Shaft Coupling

Product Description

OEM Small U Joint Flexible Propeller Shaft Coupling Customized

Our cardan shafts can be used to resist vibration and impact in the harsh environment of steel rolling, and the service life of cardan shafts is longer. We can also customize the special connection modes of cardan shafts in accordance of customers' requirements .High precision, flexible joints, easy installation, perfect after-sales service and so on are highlight features of our products.

Product specification

1, advance technology
2, high accuracy and closely structure
3, high quality, the best price and good services
4, Strictly quality control by ISO9001: 2008.
5, with R&D Dept, OEM is available
About our advantages
1). With 10 years experience and professional OEM / ODM
2). Advance technology and R&D Dept with rich experience
3). Delivery in time
4).Competitive and reasonable price
5). High reputation

Model	Tactical diameter	Nominal torque	Fatique	Axis rotation	Stretch	Lmin	Size									Rotary inertia		Weight
	D	Tn	torque	β	length		mm									kg.m2		kg
	mm	kN·m	Tf	(°)	LS
			kN·m		mm		D1	D2	D3	Lm	n-d	k	t		g	Lmin	Increase	Lmin	Increase
							js11	H7						b			100mm		100mm
														h9
SWC180BF	180	20	10	≤25	100	810	155	105	114	110	8-17	17	5	24	7	0.267	0.007	80	2.8
SWC200BF	200	32	16	≤15	110	860	170	120	127	135	8-17	19	5	28	8	0.505	0.013	109	3.6
SWC225BF	225	40	20	≤15	140	920	196	135	152	120	8-17	20	5	32	9	0.788	0.0234	138	4.9
SWC250BF	250	63	31.5	≤15	140	1035	218	150	168	140	8-19	25	6	40	12.5	1.445	0.0277	196	5.3
SWC285BF	285	90	45	≤15	140	1190	245	170	194	160	8-21	27	7	40	15	2.873	0.051	295	6.3
SWC315BF	315	125	63	≤15	140	1315	280	185	219	180	10-23	32	8	40	15	5.094	0.795	428	8
SWC350BF	350	180	90	≤15	150	1410	310	210	267	194	10-23	35	8	50	16	9.195	0.2219	932	15
SWC390BF	390	250	125	≤15	170	1590	345	235	267	215	10-25	40	8	70	18	16.62	0.2219	817	15
SWC440BF	440	355	180	≤15	190	1875	390	255	325	260	16-28	42	10	80	20	28.24	0.4744	1290	21.7
SWC490BF	490	500	250	≤15	190	1985	435	275	325	270	16-31	47	12	90	22.5	46.33	0.4744	1631	21.7
SWC550BF	550	710	355	≤15	240	2300	492	320	426	305	16-31	50	12	100	22.5	86.98	1.357	2567	34
SWC620BF	620	1000	500	≤15	240	2500	555	380	426	340	16-38	55	12	100	25	147.5	1.375	3267	34

OEM Small U Joint Flexible Propeller Shaft Coupling Customized 0
