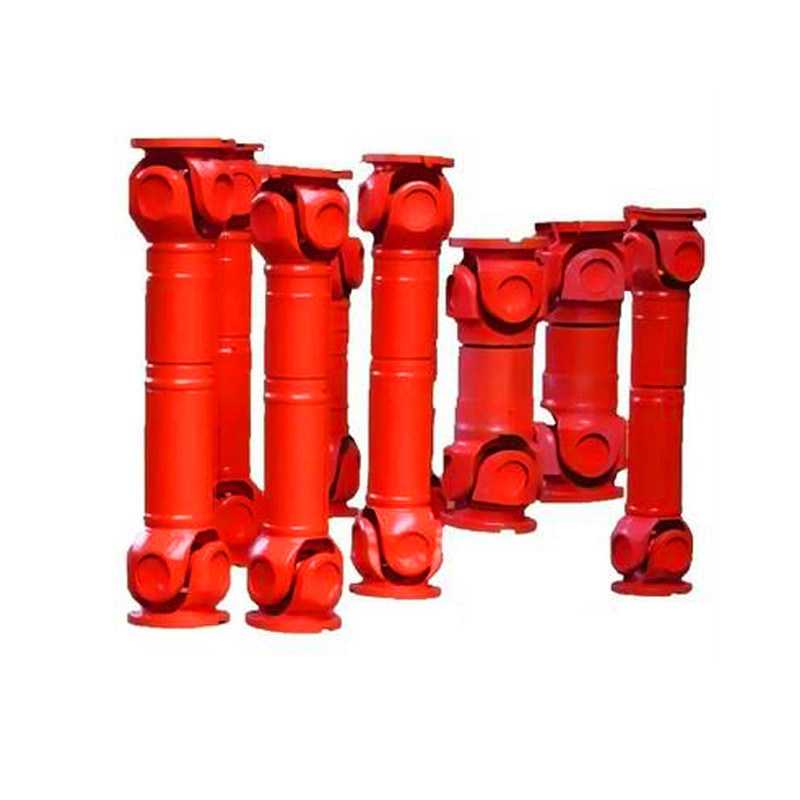

Introduction Of SWC Universal Joint Coupling
The SWC universal joint coupling is a structure without bolts. The bearing is fixed without bolts. It avoids the weak links damaged by bolt shearing, prolongs the service life and is convenient for maintenance. It is suitable for rolling machinery, lifting and transportation machinery and other heavy machinery. It connects two transmission shafts with different axes, the rotation diameter is 100 to 620mm, the nominal torque is 1.25 to 1000kN m, and the axis angle is 15 to 25 degrees.
Structure & Parameter
Normal specification
Model |
Tactical diameter D mm |
Nominal torque Tn kN·m |
Fatique torque Tf kN·m |
Axis rotation β ≤ |
Stretch Length Ls mm |
Size mm |
|||||||||
| Lmin | D1 js11 |
D2 | D3 | Lm | n-d | k | |||||||||
| β=5° | β=10° | ||||||||||||||
| SWC680BF | 680 | 1400 | 710 | 5°;10° | 250 | 3230 | 635 | 550 | 508 | 335 | 360 | 24-25 | 55 | ||
| SWC780BF | 780 | 2500 | 1250 | 250 | 3620 | 725 | 640 | 630 | 370 | 405 | 24-31 | 62 | |||
| SWC840BF | 840 | 3150 | 1600 | 250 | 3840 | 775 | 710 | 660 | 425 | 480 | 24-38 | 70 | |||
| SWC920BF | 920 | 4000 | 2000 | 300 | 4570 | 855 | 760 | 750 | 460 | 480 | 24-38 | 80 | |||
| SWC1000BF | 1000 | 5000 | 2500 | 300 | 4790 | 915 | 840 | 790 | 515 | 535 | 20-50 | 90 | |||
| SWC1100BF | 1100 | 6310 | 3150 | 300 | 503 | 1012 | 920 | 850 | 570 | 600 | 20-50 | 100 | |||
| SWC1200BF | 1200 | 8000 | 4000 | 300 | 5280 | 1100 | 1000 | 900 | 620 | 660 | 20-58 | 110 | |||
Large specification
Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.
Company main products are: all kinds of couplings for machinery industry all over the word , such as radial elastic coupling, tyred coupling, universal coupling, drum gear coupling, plum flower form elastic coupling, rigid coupling oldham coupling, roller chain coupling, diaphragm coupling, coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel pin coupling, pump shaft coupling, etc..
The concepts of our company is live on quality and develop on honor. The coupling has the advantage of high quality, low price, complete product models.Our company will be your best choice, and we look forward to cooperate with you.
