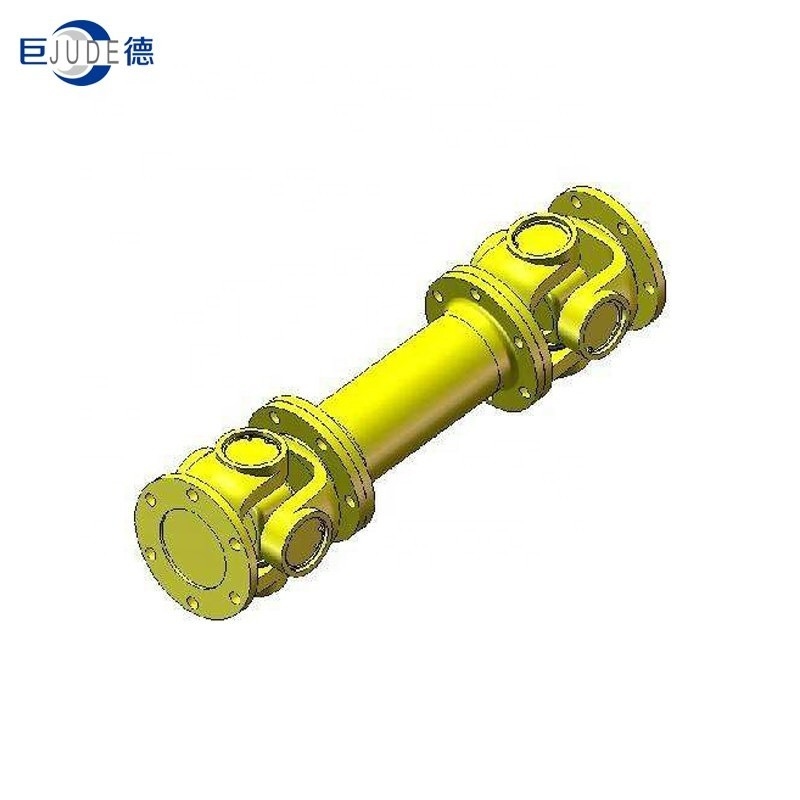

Cardan Shaft Coupling
>
|
| Place of Origin | cangzhou、china |
| Brand Name | jude |
| Certification | CE、ISO |
| Model Number | SWC |
Cardan Shaft Coupling use:
A mechanical part used to connect two shafts (driving shaft and driven shaft) in different mechanisms to rotate together to transmit torque. In high-speed and heavy-load power transmission, some couplings also have the functions of buffering, damping and improving the dynamic performance of the shafting. The coupling consists of two halves, which are respectively connected with the driving shaft and the driven shaft. Most of the general power machines are connected with the working machine by means of couplings.
The selection of the coupling mainly considers the speed of the required transmission shaft, the size of the load, the installation accuracy of the two parts to be connected, the stability of the rotation, the price, etc., referring to the characteristics of various types of couplings, choose a suitable one. Coupling type.
| Model | Tactical diameter | Nominal torque | Fatique | Axis rotation | Stretch | Lmin | Size | Rotary inertia | Weight | ||||||||||
| D | Tn | torque | β | length | mm | kg.m2 | kg | ||||||||||||
| mm | kN·m | Tf | (°) | LS | |||||||||||||||
| kN·m | mm | D1 | D2 | D3 | Lm | n-d | k | t | g | Lmin | Increase | Lmin | Increase | ||||||
| js11 | H7 | b | 100mm | 100mm | |||||||||||||||
| h9 | |||||||||||||||||||
| SWC180BF | 180 | 20 | 10 | ≤25 | 100 | 810 | 155 | 105 | 114 | 110 | 8-17 | 17 | 5 | 24 | 7 | 0.267 | 0.007 | 80 | 2.8 |
| SWC200BF | 200 | 32 | 16 | ≤15 | 110 | 860 | 170 | 120 | 127 | 135 | 8-17 | 19 | 5 | 28 | 8 | 0.505 | 0.013 | 109 | 3.6 |
| SWC225BF | 225 | 40 | 20 | ≤15 | 140 | 920 | 196 | 135 | 152 | 120 | 8-17 | 20 | 5 | 32 | 9 | 0.788 | 0.0234 | 138 | 4.9 |
| SWC250BF | 250 | 63 | 31.5 | ≤15 | 140 | 1035 | 218 | 150 | 168 | 140 | 8-19 | 25 | 6 | 40 | 12.5 | 1.445 | 0.0277 | 196 | 5.3 |
| SWC285BF | 285 | 90 | 45 | ≤15 | 140 | 1190 | 245 | 170 | 194 | 160 | 8-21 | 27 | 7 | 40 | 15 | 2.873 | 0.051 | 295 | 6.3 |
| SWC315BF | 315 | 125 | 63 | ≤15 | 140 | 1315 | 280 | 185 | 219 | 180 | 10-23 | 32 | 8 | 40 | 15 | 5.094 | 0.795 | 428 | 8 |
| SWC350BF | 350 | 180 | 90 | ≤15 | 150 | 1410 | 310 | 210 | 267 | 194 | 10-23 | 35 | 8 | 50 | 16 | 9.195 | 0.2219 | 932 | 15 |
| SWC390BF | 390 | 250 | 125 | ≤15 | 170 | 1590 | 345 | 235 | 267 | 215 | 10-25 | 40 | 8 | 70 | 18 | 16.62 | 0.2219 | 817 | 15 |
| SWC440BF | 440 | 355 | 180 | ≤15 | 190 | 1875 | 390 | 255 | 325 | 260 | 16-28 | 42 | 10 | 80 | 20 | 28.24 | 0.4744 | 1290 | 21.7 |
| SWC490BF | 490 | 500 | 250 | ≤15 | 190 | 1985 | 435 | 275 | 325 | 270 | 16-31 | 47 | 12 | 90 | 22.5 | 46.33 | 0.4744 | 1631 | 21.7 |
| SWC550BF | 550 | 710 | 355 | ≤15 | 240 | 2300 | 492 | 320 | 426 | 305 | 16-31 | 50 | 12 | 100 | 22.5 | 86.98 | 1.357 | 2567 | 34 |
| SWC620BF | 620 | 1000 | 500 | ≤15 | 240 | 2500 | 555 | 380 | 426 | 340 | 16-38 | 55 | 12 | 100 | 25 | 147.5 | 1.375 | 3267 | 34 |
