Flex Drive Cardan Shaft Coupling SWC Types For Industrial Equipment
  • Flex Drive Cardan Shaft Coupling SWC Types For Industrial Equipment
  • Flex Drive Cardan Shaft Coupling SWC Types For Industrial Equipment
  • Flex Drive Cardan Shaft Coupling SWC Types For Industrial Equipment

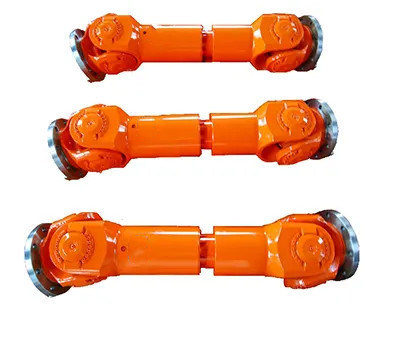

Flex Drive Cardan Shaft Coupling SWC Types For Industrial Equipment

Flex Drive Cardan Shaft Coupling SWC Types For Industrial Equipment

Place of Origin cangzhou、china
Brand Name jude
Certification CE、ISO
Model Number SWC Types Drive Cardan Shaft
Product Details
Standard Or Nonstandard:
Standard
Surface Treatment:
Electrostatic Spraying
The Radial Displacement:
0.2~0.6mm
Flexible Or Rigid:
Flexible
Material:
45# Steel
Product Name:
Sprockets For Simplex, Duplex And Triplex Chain
Body Material:
Steel
Application:
Machinery, Textile, Mining, Food, Wine, Electric Vehicles And Other Industries
Highlight:

SWC Cardan Shaft Coupling

,

Drive Cardan Shaft Coupling

,

Cardan Drive Shaft Flex Coupling

Product Description

SWC  Cardan Shaft Basic Parameter And Main Dimension(JB/T5513-1991)

Cardan shaft is widely used in rolling mill, punch, straightener, crusher, ship drive, paper making equipment, common machinery, water pump equipment,test bench, and other mechanical applications.

Flex Drive Cardan Shaft Coupling SWC Types For Industrial Equipment 0

Model Tactical diameter Nominal torque Fatique Axis rotation Stretch Lmin Size Rotary inertia Weight
D Tn torque β length mm kg.m2 kg
mm kN·m Tf (°) LS
    kN·m   mm D1 D2 D3 Lm n-d k t   g Lmin Increase Lmin Increase
          js11 H7 b 100mm 100mm
              h9
SWC180BF 180 20 10 ≤25 100 810 155 105 114 110 8-17 17 5 24 7 0.267 0.007 80 2.8
SWC200BF 200 32 16 ≤15 110 860 170 120 127 135 8-17 19 5 28 8 0.505 0.013 109 3.6
SWC225BF 225 40 20 ≤15 140 920 196 135 152 120 8-17 20 5 32 9 0.788 0.0234 138 4.9
SWC250BF 250 63 31.5 ≤15 140 1035 218 150 168 140 8-19 25 6 40 12.5 1.445 0.0277 196 5.3
SWC285BF 285 90 45 ≤15 140 1190 245 170 194 160 8-21 27 7 40 15 2.873 0.051 295 6.3
SWC315BF 315 125 63 ≤15 140 1315 280 185 219 180 10-23 32 8 40 15 5.094 0.795 428 8
SWC350BF 350 180 90 ≤15 150 1410 310 210 267 194 10-23 35 8 50 16 9.195 0.2219 932 15
SWC390BF 390 250 125 ≤15 170 1590 345 235 267 215 10-25 40 8 70 18 16.62 0.2219 817 15
SWC440BF 440 355 180 ≤15 190 1875 390 255 325 260 16-28 42 10 80 20 28.24 0.4744 1290 21.7
SWC490BF 490 500 250 ≤15 190 1985 435 275 325 270 16-31 47 12 90 22.5 46.33 0.4744 1631 21.7
SWC550BF 550 710 355 ≤15 240 2300 492 320 426 305 16-31 50 12 100 22.5 86.98 1.357 2567 34
SWC620BF 620 1000 500 ≤15 240 2500 555 380 426 340 16-38 55 12 100 25 147.5 1.375 3267 34





Flex Drive Cardan Shaft Coupling SWC Types For Industrial Equipment 1

Flex Drive Cardan Shaft Coupling SWC Types For Industrial Equipment 2
