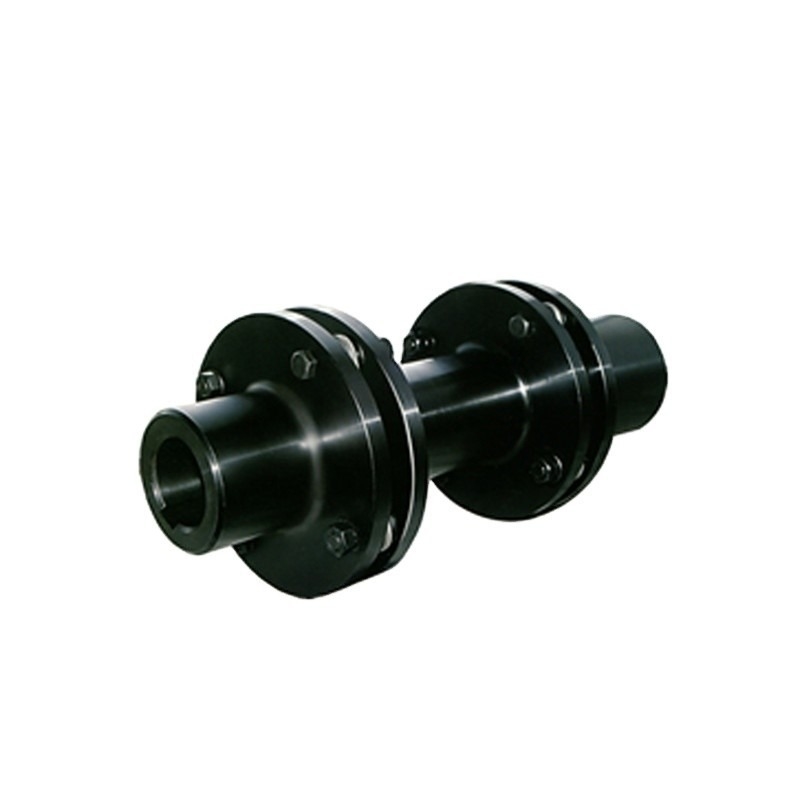

JZMJ Heavy Duty Elastic Flexible Diaphragm Coupling High Torque With Double Key
  • JZMJ Heavy Duty Elastic Flexible Diaphragm Coupling High Torque With Double Key
  • JZMJ Heavy Duty Elastic Flexible Diaphragm Coupling High Torque With Double Key
JZMJ Heavy Duty Elastic Flexible Diaphragm Coupling High Torque With Double Key

JZMJ Heavy Duty Elastic Flexible Diaphragm Coupling High Torque With Double Key

Place of Origin cangzhou、china
Brand Name jude
Certification CE、ISO
Model Number JZMJ
Product Details
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops
Structure:
Disc
Material:
Steel
Product Name:
JZMJ Heavy Duty Elastic Diaphragm Coupling With Double Key
Application:
Industrial Equipment
Body Material:
45# Steel
Packing:
Wooden Box
MOQ:
1 Set
Features 1:
High Torque High Rigidity
Custom:
Yes
Port:
Tianjin
High Light:

Heavy Duty Flexible Diaphragm Coupling

,

High Torque Flexible Diaphragm Coupling

,

Heavy Duty Elastic Flexible Coupling

Product Description

JZMJ Heavy Duty Elastic Diaphragm Coupling With Double Key



Product Description

     ZMJ Heavy Duty Elastic Double Key Diaphragm Coupling belongs to high torque diaphragm coupling heavy machinery shaft connection is a strengthening coupling JMJ diaphragm coupling, JZMJ Heavy Duty Elastic Double Key Diaphragm Coupling is composed of several groups of diaphragm (stainless steel sheet) coupled with the two half couplings with bolts staggered, increase the transmission distance through the intermediate shaft. Because there are two groups of the diaphragm of the heavy elastic diaphragm of the intermediate shaft of the intermediate shaft, the flexible compensation of the JZMJ is much better than that of the common diaphragm coupler.

      JZMJ Heavy Duty Elastic Double Key Diaphragm Coupling rely on elastic deformation of diaphragm to compensate relative displacement of two connected axes. Diaphragm is divided into connecting rod type and different shape whole piece. Its characteristics are: no lubrication, compact structure, high strength, long service life, no rotation clearance, not affected by temperature and oil, with high mechanical strength, large bearing capacity, light weight, small size, transmission efficiency and high precision, good reliability, convenient assembly and disassembly, and has no relative sliding, long service life, no noise, acid and alkali resistance, corrosion

resistance etc..





Related products

JZM - basic type;

JZMJ - intermediate shaft type;



JZMJ Heavy Duty Elastic Flexible Diaphragm Coupling High Torque With Double Key 0

Basic parameters of JZMJ diaphragm coupling





Size Torque Tn Nm Speed [n] r/min Bore d, d1 length L D mm D1 mm D2 mm L1min mm t mm Inertia kg.㎡ Mass kg
J1 Y L1min Every 1m
JZMJ1 63 9300 20 38 52 92 53 60 44 8±0.2 0.01 3.7 22.79
25, 28 44 62
30 60 82
JZMJ2 100 8400 25, 28 44 62 102 63 72 49 8±0.2 0.018 6.3 32
30 60 82
40 84 112
JZMJ3 250 6700 30 60 82 128 77 87 60 11±0.3 0.056 9.14 46
40, 42, 45, 48, 50, 55 84 112
JZMJ4 500 4900 35, 38 60 82 145 91 102 70 11±0.3 0.095 13.63 64
40, 42, 45, 48, 50, 55, 56 84 112
60 107 142
JZMJ5 800 5100 40, 42, 45, 48, 50, 55, 56 84 112 168 105 117 83 14±0.3 0.219 23.35 84
60, 63, 65, 70, 71, 75 107 142
JZMJ6 1000 4750 45 84 112 180 112 124 86 15±0.4 0.35 32.28 94
60, 63, 65, 70, 71, 75 107 142
80 132 172
JZMJ7 1600 4300 50 84 112 200 120 134 86 15±0.4 0.51 39.07 110
60, 63, 65, 70, 71, 75 107 142
80, 85 132 172
JZMJ8 2000 4200 55, 56 84 112 205 120 135 91 20±0.4 0.53 39.86 112
60, 63, 65, 70, 71, 75 107 142
80, 85 132 172
JZMJ9 2500 4000 55, 56 84 112 215 128 145 101 20±0.4 0.68 46.78 129
60, 63, 65, 70, 71, 75 107 142
80 132 172
JZMJ10 3150 3650 60, 63, 65, 70, 71, 75 107 142 235 132 151 109 23±0.5 0.97 56.13 140
80 132 172
JZMJ11 4000 3400 60, 63, 65, 70, 71, 75 107 142 250 145 164 109 23±0.5 1.48 74.09 165
80 132 172
100 167 212
JZMJ12 6300 3200 60, 63, 65, 70, 71, 75 107 142 270 155 184 119 23±0.5 2.13 87.65 207
80 132 172
100, 110 167 212
JZMJ13 12500 2850 65 107 142 300 162 194 128 27±0.6 2.93 106.23 231
80 132 172
100 167 212
JZMJ14 16000 2700 70 107 142 320 176 213 138 27±0.6 3.98 125.23 278
80 132 172
100 167 212
JZMJ15 20000 2450 75 107 142 350 186 215 153 32±0.7 6.44 173.52 283
80 132 172
100 167 212
130 202 252
JZMJ16 25000 2300 80 132 172 370 203 235 158 32±0.7 8.48 200.88 338
100 167 212
130,140,150 202 252
JZMJ17 31500 2150 80 132 172 400 230 266 178 32±0.7 14.2 279.61 433
100 167 212
130,140,150 202 252
160 242 302
JZMJ18 40000 1950 100 167 212 440 245 280 19038 38±0.9 20.73 345.53 480
130,140,150 202 252
160,170,180 242 305
JZMJ19 45000 1850 100 167 212 460 260 300 200 38±0.9 28.56 421 551
130,140,150 202 252
160,170,180 242 302
190 282 352
JZMJ20 50000 1800 120, 125 167 212 480 280 320 215 38±0.9 32.52 482.6 628
130,140,150 202 252
160,170,180 242 302
190,200 282 352
JZMJ21 56000 1700 120, 125 167 212 500 295 336 225 38±0.9 43.05 536 692
130,140,150 202 252
160,170,180 242 302
190,200,220 282 352
JZMJ22 63000 1600 140,150 202 252 540 310 360 236 44±1 58.99 641 794
160,170,180 242 302
190,200,220 282 352
JZMJ23 80000 1450 140,150 202 252 600 335 385 257 50±1.2 98.45 880 908
160,170,180 242 302
190,200,220 282 352
240 330 410
JZMJ24 100000 1400 160,170,180 242 302 320 350 408 272 50±1.2 116.15 964 1020
190,200,220 282 352
240,250 330 410
JZMJ25 125000 1300 180 242 302 660 385 445 292 50±1.2 163.85 1204 1251
190,200,220 282 352
240,250,260 330 410
280 380 470
JZMJ26 160000 1200 180 242 302 720 410 485 317 60±1.4 245.9 1507 1441
190,200,220 282 352
240,250,260 330 410
280,300 380 470
JZMJ27 200000 1150 220 282 352 740 420 503 322 60±1.4 275.08 1594 1550
240,250,260 330 410
280,300 380 470
JZMJ28 250000 1100 240,250,260 330 410 770 450 530 342 60±1.4 342.37 1807 1721
280,300 380 470
JZMJ29 315000 1050 250,260 330 410 820 490 559 372 60±1.4 514.91 2358 2025
280,300,320 380 470
340 450 550
JZMJ30 500000 760 280,300,320 380 470 875 520 575 419 50±1.6 28.63 2507 1915
340,360 450 550
JZMJ31 63000 715 300,320 380 470 935 560 610 464 60±1.9 980.83 3391 2280
340,360,380 450 550
400 540 650
JZMJ32 800000 650 320 380 470 103 600 622 494 60±1.9 1368 3697 2370
340,360,380 450 550
400,420 540 650
JZMJ33 1000000 620 360,380 450 550 1080 660 660 510 66±2.2 1689 4450 2669
400,420,440,450,460 540 650
JZMJ34 1250000 576 400,420,440,450,460 540 650 1160 710 750 565 70±2.3 2645 5877 3446
480,500
JZMJ35 160000 520 440,450,460,480,500 540 650 1290 820 820 620 82±2.6 4775 8550 4120
530,560 680 800
JZMJ36 2000000 475 480,500 540 650 1410 900 900 685 92±2.8 7620 11211 4962
530,560,600 580 800

JZMJ Heavy Duty Elastic Flexible Diaphragm Coupling High Torque With Double Key 1

Packaging & Shipping

JZMJ Heavy Duty Elastic Flexible Diaphragm Coupling High Torque With Double Key 2

About Us

JZMJ Heavy Duty Elastic Flexible Diaphragm Coupling High Torque With Double Key 3

        Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.

        Company main products are: all kinds of couplings for machinery industry all over the word , such as radial elastic coupling, tyred coupling, universal coupling, drum gear coupling, plum flower form elastic coupling, rigid coupling oldham coupling, roller chain coupling, diaphragm coupling, coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel pin coupling, pump shaft coupling, etc..

        The concepts of our company is live on quality and develop on honor. The coupling has the advantage of high quality, low price, complete product models.Our company will be your best choice, and we look forward to cooperate with you.

JZMJ Heavy Duty Elastic Flexible Diaphragm Coupling High Torque With Double Key 4

FAQ

Q1: Are you trading company or manufacturer ?

A: We are factory.



Q2:Do you provide samples ? is it free or extra ?

A: : Yes, we could offer the sample but not for free.Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you.



Q3: How long is your delivery time?

A: Generally it is 10-15 days if the goods are in stock. or it is 7-25 days if the goods are not in stock, it is according to quantity.



Q4:How long is your warranty?

A: Our Warranty is 12 month.



Q5 :Do you have inspection procedures for coupling ?

A:100% self-inspection before packing



Q6. What’s your payment?

A:1) 100% T/T. 2) 30% in advance, others before shipment. 3) L/C Q7:Can I have a visit to your factory before the order? A: Sure,welcome to visit our factory.
