Flexible Diaphragm Coupling
>
|
|
| Place of Origin | cangzhou、china |
| Brand Name | jude |
| Certification | CE、ISO |

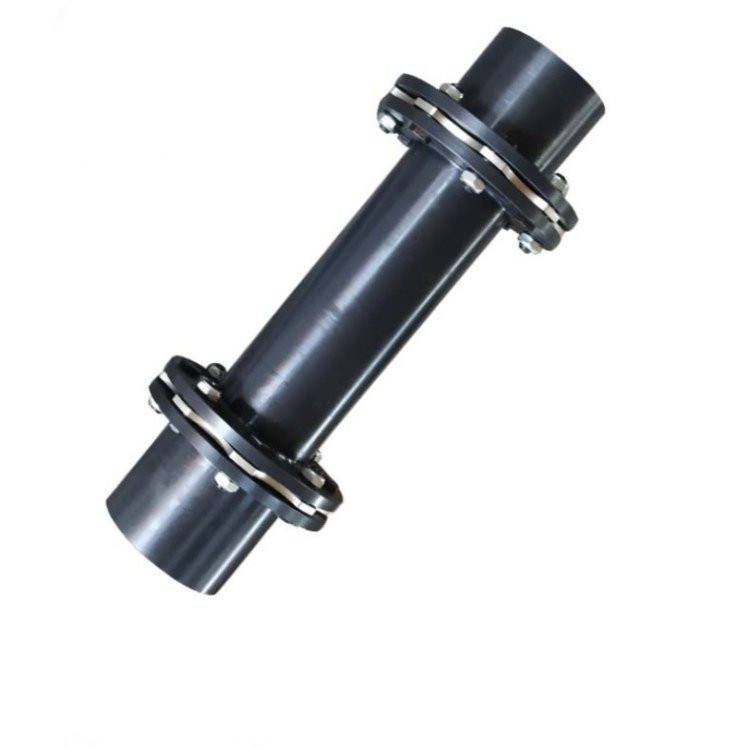

Metal flex couplings are disc type couplings in which several flexible metallic elements are alternately attached with bolts to opposite flanges. As polymeric elastomer is replaced by metal disc, Metal Flex coupling provides excellent temperature capability without sacrificing angular and axial misalignment. The coupling provides low axial and bending stiffness while possessing high torsional rigidity. The stretched shim pack design of EPT Metal Flex couplings provides zero backlash. EPT Metal Flex couplings are available up to 13367 Nm torque with single shim pack (UMK) and double shim pack (UMS) series.
FEATURES
|
Material Available
|
Stainless Steel:SS201,SS301, SS303, SS304, SS316, SS416 etc.
35CrMo 40CrMo42 CrMo Steel:mild steel, Carbon steel, 4140, 4340, Q235, Q345B, 20#, 45# Aluminum:AL6061, Al6063, AL6082, AL7075, AL5052, A380 etc. Iron:A36, 45#, 1213, 12L14, 1215 etc. Plastic:ABS, PC, PE, POM, Delrin, Nylon, , PP,PEI, Peek or as customer required . |
|
CNC Turning
|
φ0.5 - φ300 * 750 mm,+/-0.005 mm
|
|
CNC Milling
|
510 * 1020 * 500 mm(max),+/-0.001 mm-+/-0.005 mm
|
|
Surface Finish
|
Aluminum:Clear Anodized,Color Anodized,Sandblast Anodized,Chemical Film,Brushing,Polishing,Chroming.
Stainless Steel:Polishing,Passivating,Sandblasting,Laser engraving. Steel:Zinc plating,Oxide black,Nickel plating,Chrome plating,Carburized, Heat treatment,Powder Coated. Plastic:Painting,Chrome plating,polishing,Sandblast,Laser engraving. |
|
Drawing Format
|
IGS,STP,X_T ,DXF,DWG , Pro/E, PDF
|
|
Test Equipment
|
Measurement instrument, Projector, CMM, Altimeter, Micrometer, Thread Gages, Calipers, Pin Gauge etc.
|
Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.
Company main products are: all kinds of couplings for machinery industry all over the word , such as radial elastic coupling, tyred coupling, universal coupling, drum gear coupling, plum flower form elastic coupling, rigid coupling oldham coupling, roller chain coupling, diaphragm coupling, coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel pin coupling, pump shaft coupling, etc..
The concepts of our company is live on quality and develop on honor. The coupling has the advantage of high quality, low price, complete product models.Our company will be your best choice, and we look forward to cooperate with you.
If you are interested in our products,and want to know more details,
you can click the below or click here to send us your inquiry.
we will reply immediately.
