| Place of Origin | cangzhou、china |
| Brand Name | jude |
| Certification | CE、ISO |

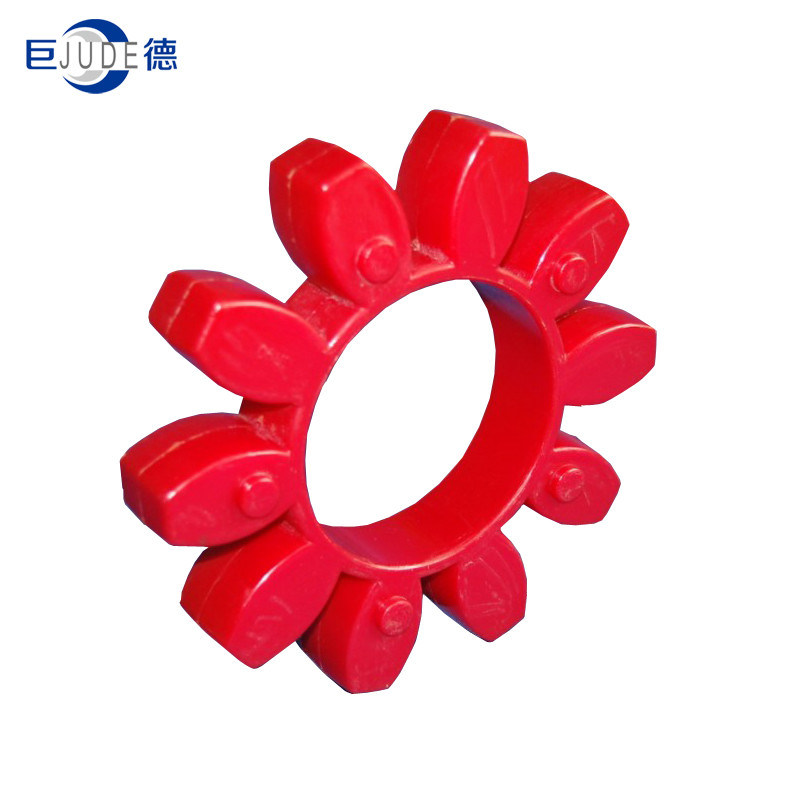

The Jaw Type couplings from SYPT are offered in the industry's largest variety of stock bore/keyway combinations. These couplings require no lubrication and provide highly reliable service for light, medium, and heavy duty electrical motor and internal combustion power transmission applications.
Four kind of meaterial are avaliable of elements:rubber,urethane,hytrel,and brozen.
| Material | Materials for silicon,fluorine,NBR,FPM,EPDM,SILCONE ACM,HNBR |
| Inspection Equipments | Excellent chemical and physical property, excellent oil- resistance, high temperature stability, etc. |
| Tolerance | +/-0.05mm |
| Drawing Format | PDF/DWG/DXF/IGS/STEP,etc |
| Application field | Parts are used on vehicles, printing machines, food processing machines, textile machines, electronic machines, etc. |
| Manufacturing process | CNC machining Broaching, Drilling, Milling, Other Machining Services, Rapid Prototyping, Turning, |
| Shape | As per your drawing Or your sample |
| Color service | Customization |
| QC inspection | Make sure 100% inspection before the delivery |
| model | specification | ||||
| Outer diameter (D) | Inner hole diameter (D) | Thickness (n) | Thickness (n) | spider | |
| GR19 | 40 | 18 | 14.5 | 12 | 6 |
| GR24 | 54 | 26 | 15.2 | 14 | 8 |
| GR28 | 65 | 30 | 19 | 15 | 8 |
| GR38 | 80 | 38 | 22 | 18 | 8 |
| GR42 | 95 | 46 | 24 | 20 | 8 |
| GR48 | 104 | 51 | 25.5 | 20.5 | 8 |
| GR55 | 120 | 60 | 27 | 22 | 8 |
| GR65 | 135 | 68 | 32 | 26 | 8 |
| GR75 | 161 | 81 | 37 | 30 | 10 |
| GR90 | 199 | 100 | 42 | 34 | 10 |
| GR100 | 224 | 111 | 38 | 10 | |
Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.
Company main products are: all kinds of couplings for machinery industry all over the word , such as radial elastic coupling, tyred coupling, universal coupling, drum gear coupling, plum flower form elastic coupling, rigid coupling oldham coupling, roller chain coupling, diaphragm coupling, coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel pin coupling, pump shaft coupling, etc..
The concepts of our company is live on quality and develop on honor. The coupling has the advantage of high quality, low price, complete product models.Our company will be your best choice, and we look forward to cooperate with you.
