| Place of Origin | cangzhou、china |
| Brand Name | jude |
| Certification | CE、ISO |
PU Size | 48mm to 380mm or according to customer's requirements |
Temperature | -40~+100°C |
Colors | Red or according to customer |
Advantage | 1.Good sealing and damping. 2.Water resistance. 3.Anti-aging. 4.Anti-ozone. 5.Oil-resistant 6.Pressure resistant. 7.High and low temperature resistant. |

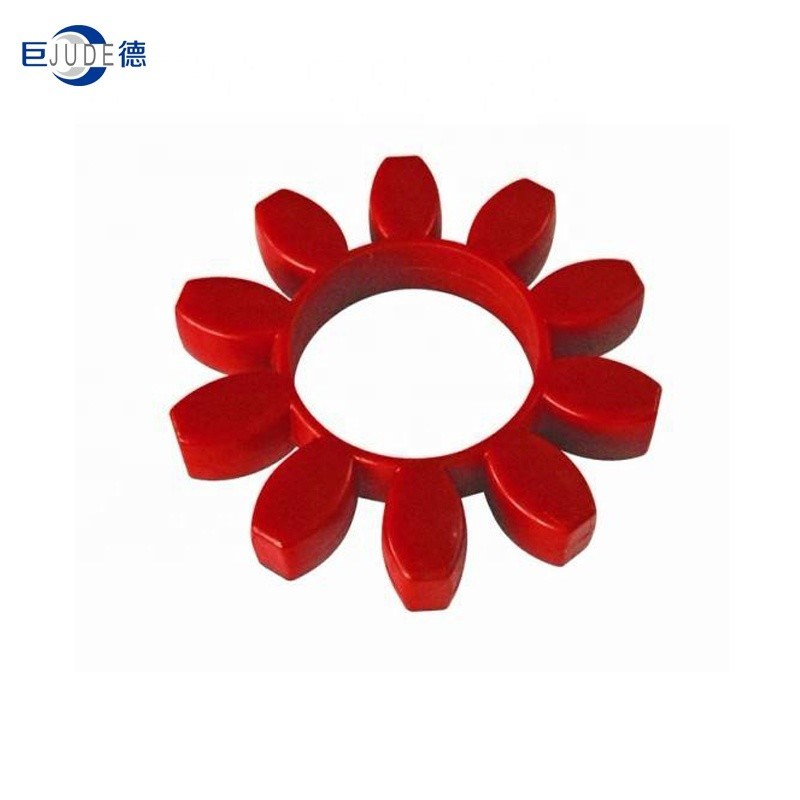

GR-Shaped Coupling elastic body Both star-shaped elastic couplings are a good shaft coupling device, which is widely used for connecting the drive shaft ends of steel rolling, lifting, forging, petroleum and other large equipment and other various mechanical equipment.
Torque: 22.4~2500NM
Wear: <0.05cm3 / 1.61km
Product hardness: 92A ±2
Operating temperature: -40~100 0 C
| model | specification | ||||
| Outer diameter (D) | Inner hole diameter (D) | Thickness (n) | Thickness (n) | 瓣数 | |
| GR19 | 40 | 18 | 14.5 | 12 | 6 |
| GR24 | 54 | 26 | 15.2 | 14 | 8 |
| GR28 | 65 | 30 | 19 | 15 | 8 |
| GR38 | 80 | 38 | 22 | 18 | 8 |
| GR42 | 95 | 46 | 24 | 20 | 8 |
| GR48 | 104 | 51 | 25.5 | 20.5 | 8 |
| GR55 | 120 | 60 | 27 | 22 | 8 |
| GR65 | 135 | 68 | 32 | 26 | 8 |
| GR75 | 161 | 81 | 37 | 30 | 10 |
| GR90 | 199 | 100 | 42 | 34 | 10 |
| GR100 | 224 | 111 | 38 | 10 | |
