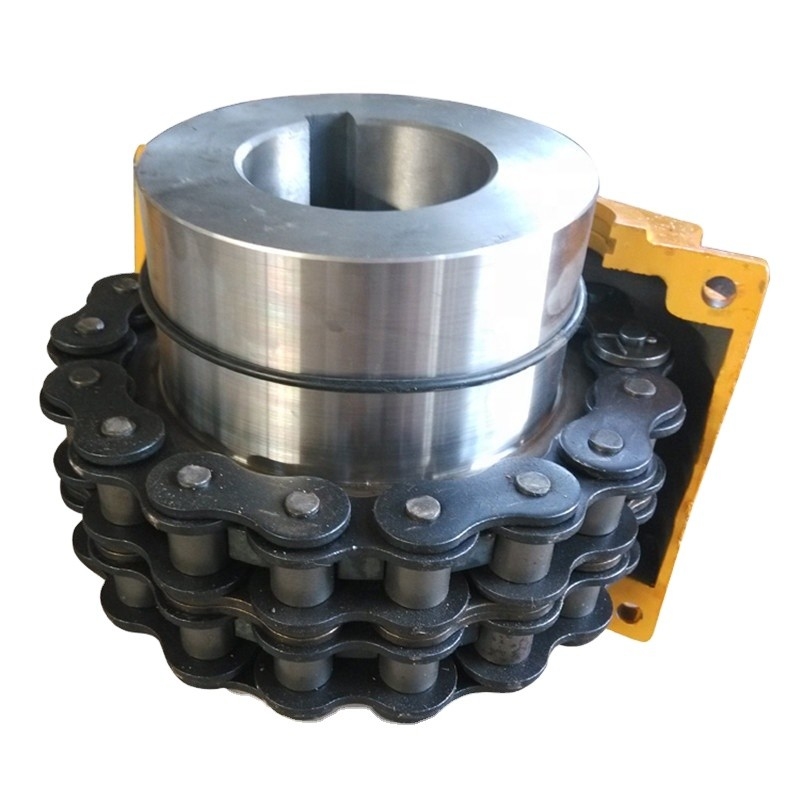

Roller Chain Coupling
>
|
|
| Place of Origin | cangzhou、china |
| Brand Name | jude |
| Certification | CE、ISO |
We are offering a wide range of Chain Coupling to our respected clients. Our offered products are used to join two pieces of rotating equipment while permitting the various degree of misalignment or end movement or both. Moreover, by careful installation and maintenance of couplings, substantial savings can be made in reduced downtime and maintenance costs.
Features:
· Longer service life
· Resistance against corrosion
· Sturdy construction
· Easy to use
| Size | Torque N.m | Speed rpm | Basic size mm | Inertia kg m2 | Weight kg | ||||||
| dmax | D | D1 | S | L | Dk | Lk | |||||
| KC3812 | 190 | 5000 | 16 | 45 | 25 | 4.9 | 30 | 59 | 61 | 5.6x10-5 | 0.6 |
| KC4012 | 249 | 4800 | 22 | 62 | 35 | 36 | 75 | 2.47X10-4 | 1.0 | ||
| KC4014 | 329 | 4800 | 28 | 69 | 43 | 7.4 | 36 | 84 | 75 | 4.53X10-4 | 1.32 |
| KC4016 | 419 | 4800 | 32 | 77 | 50 | 40 | 92 | 7.90X10-4 | 1.9 | ||
| KC5014 | 620 | 4800 | 35 | 86 | 53 | 101 | 1.37X10-3 | 2.7 | |||
| KC5016 | 761 | 3600 | 40 | 96 | 60 | 9.7 | 45 | 110 | 85 | 2.18X10-3 | 3.4 |
| KC5018 | 989 | 3600 | 45 | 106 | 70 | 122 | 3.53x10-3 | 4.4 | |||
| KC6018 | 1810 | 3300 | 56 | 127 | 85 | 142 | 9.33x10-3 | 7.8 | |||
| KC6020 | 2210 | 2500 | 60 | 139 | 100 | 11.5 | 56 | 158 | 105 | 2.10X10-2 | 10.4 |
| KC6022 | 2610 | 2500 | 71 | 152 | 110 | 168 | 2.16X10-2 | 12.4 | |||
| KC8018 | 3920 | 2000 | 80 | 170 | 115 | 63 | 186 | 3.63 X10-2 | 15.2 | ||
| KC8020 | 4800 | 2000 | 90 | 185 | 121 | 15.2 | 65 | 210 | 130 | 7.20x10-2 | 20.2 |
| KC8022 | 5640 | 1800 | 100 | 203 | 140 | 71 | 220 | 8.00X10-2 | 26.1 | ||
| KC10020 | 8400 | 1800 | 110 | 233 | 160 | 18.8 | 80 | 250 | 148 | 1.61 X10-1 | 39.1 |
| KC12018 | 12700 | 1500 | 125 | 256 | 170 | 90 | 307 | 191 | 2.68 X10-1 | 52.6 | |
| KC 12022 | 18300 | 1250 | 140 | 304 | 210 | 22.7 | 100 | 357 | 5.93 X10-1 | 79.4 | |
| KC16018 | 26400 | 1100 | 160 | 341 | 224 | 30.1 | 112 | 425 | 250 | 1.05 | 110.7 |
| KC 16022 | 38100 | 1000 | 200 | 405 | 280 | 140 | 475 | 2.50 | 191.8 | ||
| KC20018 | 54100 | 800 | 205 | 426 | 294 | 37.5 | 241 | 496 | 300 | 4.60 | 323.4 |
| KC 20022 | 77800 | 600 | 260 | 507 | 374 | 578 | 1.07X10 | 507.8 | |||
| KC24022 | 137000 | 600 | 310 | 608 | 420 | 45.1 | 353 | 650 | 350 | 2.7X10 | 958.5 |
| KC 24026 | 186000 | 500 | 380 | 705 | 520 | 745 | 5.70X10 | 1403.6 | |||
| KC 32022 | 261000 | 430 | 806 | 570 | 60.1 | 400 | 1 .08x102 | 1970 | |||
| KC 40020 | 494000 | 50 | 470 | 932 | 640 | 2.92X1 02 | 3149 | ||||
| KC 40024 | 602000 | 590 | 1093 | 800 | 75.6 | 512 | 4.95X102 | 4724 | |||
| KC 40028 | 717000 | 700 | 1255 | 960 | 9.47X102 | 6620 | |||||
|
Item name: |
Roller Chain Coupling |
|
Material: |
C45,Stainless steel,Iron, 40Mn, 45Mn |
|
Type: |
Double row roller chain coupling single row roller chain coupling gear chain coupling nylon chain coupling |
|
Production process: |
Precision casting, sand casting,die casting,forging ,welding,gravity casting,lost wax casting,investment casting,stamping,CNC machining |
|
Heat Treatment: |
High frequency quenching, carburizing, electrophoresis |
|
Cold Treatment: |
Painting, Galvanizing, Parkerising |
|
Used: |
Construction industry machinery, industrial machinery, agricultural machinery, forestry machinery, mining machinery, fishery machinery, teaching accessories, electronic accessories etc. |
|
Working condition: |
High temperature, damp and dusty environment, Not suitable for high-speed, severe impact load and axial force transmission occasions Chain coupling should be under the condition of good lubrication and shield. |
|
MOQ: |
Small order can be accepted |
|
Delivery Time: |
Sample: Within 2-3days Production:15-20 days |
|
Port of delivery: |
TIANJIN/BEIJING |
|
Payment Terms: |
T/T,L/C, Other payment terms we can negotiate |
|
Shipment: |
A. Send by Express – Swift delivery ( 4-7 working days) and we can get a special price Shipment:UPS, TNT,DHL,China post,EMS,FedEx ,etc. |
|
|
B. Send by Air: Arrive at destination Airport. |
|
|
C. Ship by Sea: Low shipping cost and slow delivery (15-30 days depends). Suitable for large quantity and non-urgent delivery. |
|
Packing: |
Carton / wooden case,or as your requirement |
|
Supply Ability: |
100,00 pcs Roller Chain Coupling per month |
