Roller Chain Coupling
>
|
|
| Place of Origin | cangzhou、china |
| Brand Name | jude |
| Certification | CE、ISO |
| Model Number | kc3812 |

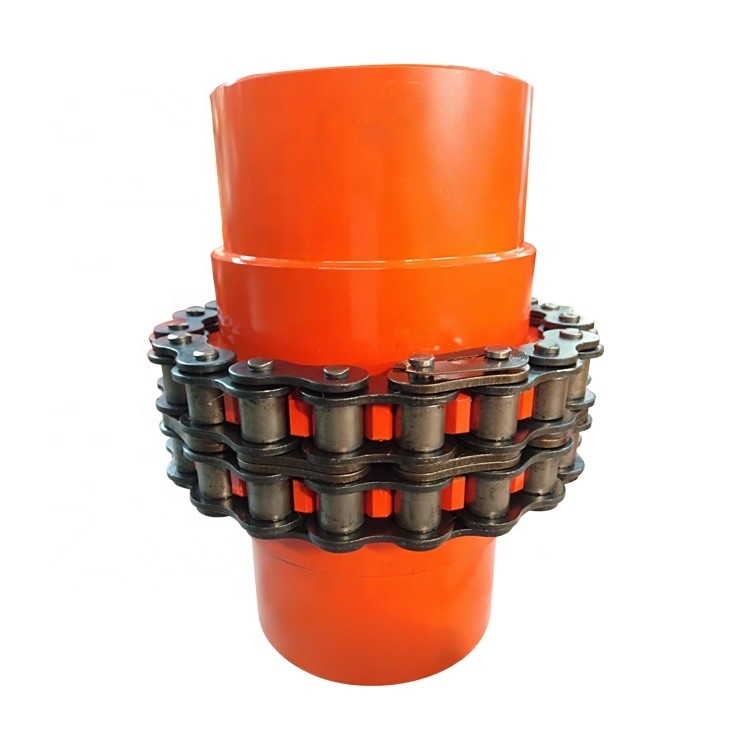

KC 3812 High Quality Roller Chain Couplings
SPROCKETS
Sprocket face hardened teeth share torque with strong roller chains engaged with teeth.
EASY MAINTENANCE
Both axes can be easily coupled or decoupled.
HIGH TORQUE CAPACITY
RATED SPEED: 4-1 5680N.M.
SUITABLE FOR REVERSE ROTATION, MEDIUM AND LOW SPEED
| Item name: | Roller Chain Coupling |
| Material: | C45,Stainless steel,Iron, 40Mn, 45Mn |
| Type: |
Double row roller chain coupling single row roller chain coupling gear chain coupling nylon chain coupling |
| Production process: | Precision casting, sand casting,die casting,forging ,welding,gravity casting,lost wax casting,investment casting,stamping,CNC machining |
| Heat Treatment: | High frequency quenching, carburizing, electrophoresis |
| Cold Treatment: | Painting, Galvanizing, Parkerising |
| Used: | Construction industry machinery, industrial machinery, agricultural machinery, forestry machinery, mining machinery, fishery machinery, teaching accessories, electronic accessories etc. |
| Working condition: |
High temperature, damp and dusty environment, Not suitable for high-speed, severe impact load and axial force transmission occasions Chain coupling should be under the condition of good lubrication and shield. |
| MOQ: | Small order can be accepted |
| Delivery Time: | Sample: Within 2-3days Production:15-20 days |
| Port of delivery: | TIANJIN/BEIJING |
| Payment Terms: | T/T,L/C, Other payment terms we can negotiate |
| Shipment: | A. Send by Express – Swift delivery ( 4-7 working days) and we can get a special price Shipment:UPS, TNT,DHL,China post,EMS,FedEx ,etc. |
| B. Send by Air: Arrive at destination Airport. | |
| C. Ship by Sea: Low shipping cost and slow delivery (15-30 days depends). Suitable for large quantity and non-urgent delivery. | |
| Packing: | Carton / wooden case,or as your requirement |
| Supply Ability: | 100,00 pcs Roller Chain Coupling per month |
| Size | Torque N.m | Speed rpm | Basic size mm | Inertia kg m2 | Weight kg | ||||||
| dmax | D | D1 | S | L | Dk | Lk | |||||
| KC3812 | 190 | 5000 | 16 | 45 | 25 | 4.9 | 30 | 59 | 61 | 5.6x10-5 | 0.6 |
| KC4012 | 249 | 4800 | 22 | 62 | 35 | 36 | 75 | 2.47X10-4 | 1.0 | ||
| KC4014 | 329 | 4800 | 28 | 69 | 43 | 7.4 | 36 | 84 | 75 | 4.53X10-4 | 1.32 |
| KC4016 | 419 | 4800 | 32 | 77 | 50 | 40 | 92 | 7.90X10-4 | 1.9 | ||
| KC5014 | 620 | 4800 | 35 | 86 | 53 | 101 | 1.37X10-3 | 2.7 | |||
| KC5016 | 761 | 3600 | 40 | 96 | 60 | 9.7 | 45 | 110 | 85 | 2.18X10-3 | 3.4 |
| KC5018 | 989 | 3600 | 45 | 106 | 70 | 122 | 3.53x10-3 | 4.4 | |||
| KC6018 | 1810 | 3300 | 56 | 127 | 85 | 142 | 9.33x10-3 | 7.8 | |||
| KC6020 | 2210 | 2500 | 60 | 139 | 100 | 11.5 | 56 | 158 | 105 | 2.10X10-2 | 10.4 |
| KC6022 | 2610 | 2500 | 71 | 152 | 110 | 168 | 2.16X10-2 | 12.4 | |||
| KC8018 | 3920 | 2000 | 80 | 170 | 115 | 63 | 186 | 3.63 X10-2 | 15.2 | ||
| KC8020 | 4800 | 2000 | 90 | 185 | 121 | 15.2 | 65 | 210 | 130 | 7.20x10-2 | 20.2 |
| KC8022 | 5640 | 1800 | 100 | 203 | 140 | 71 | 220 | 8.00X10-2 | 26.1 | ||
| KC10020 | 8400 | 1800 | 110 | 233 | 160 | 18.8 | 80 | 250 | 148 | 1.61 X10-1 | 39.1 |
| KC12018 | 12700 | 1500 | 125 | 256 | 170 | 90 | 307 | 191 | 2.68 X10-1 | 52.6 | |
| KC 12022 | 18300 | 1250 | 140 | 304 | 210 | 22.7 | 100 | 357 | 5.93 X10-1 | 79.4 | |
| KC16018 | 26400 | 1100 | 160 | 341 | 224 | 30.1 | 112 | 425 | 250 | 1.05 | 110.7 |
| KC 16022 | 38100 | 1000 | 200 | 405 | 280 | 140 | 475 | 2.50 | 191.8 | ||
| KC20018 | 54100 | 800 | 205 | 426 | 294 | 37.5 | 241 | 496 | 300 | 4.60 | 323.4 |
| KC 20022 | 77800 | 600 | 260 | 507 | 374 | 578 | 1.07X10 | 507.8 | |||
| KC24022 | 137000 | 600 | 310 | 608 | 420 | 45.1 | 353 | 650 | 350 | 2.7X10 | 958.5 |
| KC 24026 | 186000 | 500 | 380 | 705 | 520 | 745 | 5.70X10 | 1403.6 | |||
| KC 32022 | 261000 | 430 | 806 | 570 | 60.1 | 400 | 1 .08x102 | 1970 | |||
| KC 40020 | 494000 | 50 | 470 | 932 | 640 | 2.92X1 02 | 3149 | ||||
| KC 40024 | 602000 | 590 | 1093 | 800 | 75.6 | 512 | 4.95X102 | 4724 | |||
| KC 40028 | 717000 | 700 | 1255 | 960 | 9.47X102 | 6620 | |||||
