| Place of Origin | cangzhou、china |
| Brand Name | jude |
| Certification | CE、ISO |
| Model Number | simplex, duplex and triplex chain |
Fundamental Structure of Solid Bushing & Roller Chain
1. Outsanding longer wear life: Conventional split bushings deform into a barrel shapen when side plates are pressed on, leaving only two-point contact area. Solid Bushing and Roller Chain has extremely cylindrical inside and outside bushing walls resulting in full contact to disperse bearing pressure. Less pressure ensures excellent wear resistance.
2. Up to 2-3 times longer wear life over curled bushings: The curled, split bushings have a seam where tiny space allows lubricant leakage, resulting in shorter wear life. Solid Bushing and Roller has no seam, resulting in lower bearing pressure, allowing the bushings to retain lubrication and resulting in much longer wear life.
3. Reliable performance: Solid Bushing Roller is cold-forge froms steel rod. Cold-forming process also works with the molecular structure (grain) of the steel running lengthwise in the bushings thereby increasing fatigue strength, as well as preventing bushings from breakage.Thus, Solid Bushing Roller Chain improves performance of transmission with minimizing elongation for long period of time.
|
Product Name
|

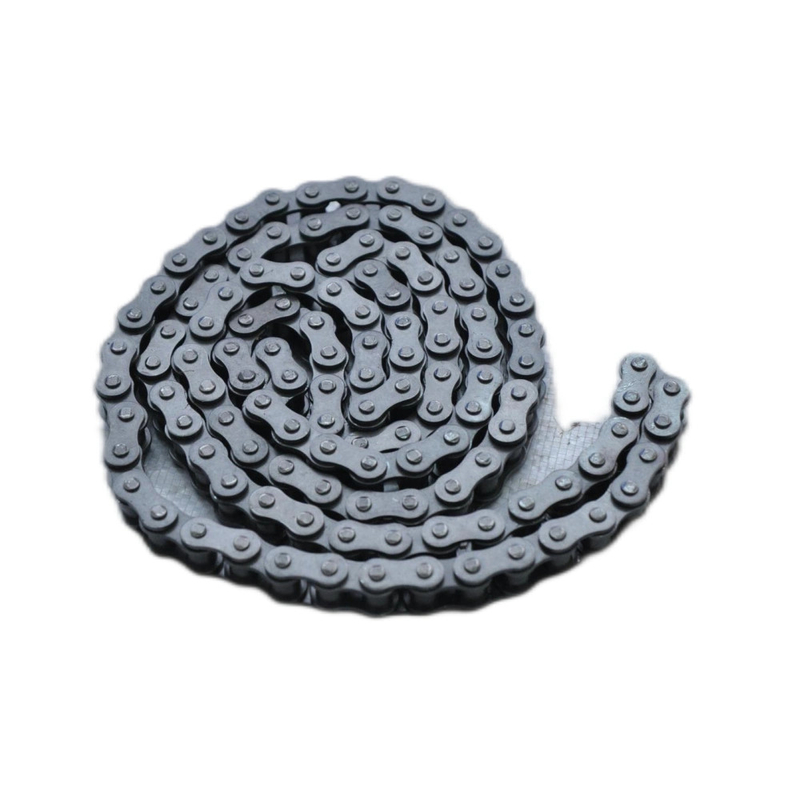

Industry Stainless Steel Roller Chain Transmission Chain Roller Chain Manufacturers
|
|
Brand Name
|
Jude |
|
Process
|
Forged or Stamping
|
|
Material
|
20CrMnTi,2Cr13 etc. As customers request.
|
|
Casting Tolerance
|
CT4-9 for Stainless Steel Chain
|
|
Surface Treatment
|
Polishing,Plating,Powder coating etc. As customers request
|
|
Quality Control
|
Strictly 100% Inspection
|
|
Service
|
OEM ODM Customized various chains, conveyor chain, roller chain etc
|
|
Packing
|
Multilayer wooden box/pallet, with big plastic bag inside
|
| Roller Chain Profile | |
| Standard: | ANSI, DIN, ISO |
| Type: | Simplex standard roller chain,Douplex standard roller chain,Triplex standard roller chain,Roller chain with attachment,Hollow pin roller chain,Leaf chain etc, |
| ANSI chain No.: | 40,50,60,80,100,120,140,160,180,200,240; C40,C50,C60,C80,C100,C120,C140,C160; |
| DIN/ISO chain No.: | 08A,10A,12A,16A,20A,24A,28A,32A,36A,40A,48A; C08A,C10A,C12A,C16A,C20A,C24A,C28A,C32A; |
| Series: | A series,B series |
| ANSI Standard Roller Chain (A series) | |
| Simplex roller chain: | 40,50,60,80,100,120,140,160,180,200,240; |
| Duplex roller chain: | 40-2,50-2,60-2,80-2,100-2,120-2,140-2,160-2,180-2,200-2,240-2; |
| Triplex roller chain: | 40-3,50-3,60-3,80-3,100-3,120-3,140-3,160-3,180-3,200-3,240-3; |
| Quadra roller chain: | 40-4,50-4,60-4,80-4,100-4,120-4,140-4,160-4,180-4,200-4,240-4; |
|
Penta roller chain: |
40-5,50-5,60-5,80-5,100-5,120-5,140-5,160-5,180-5,200-5,240-5; |
| DIN/ISO Standard Roller Chain (A series) | |
| Simplex roller chain: | 08A-1,10A-1,12A-1,16A-1,20A-1,24A-1,28A-1,32A-1,36A-1,40A-1,48A-1; |
| Duplex roller chain: | 08A-2,10A-2,12A-2,16A-2,20A-2,24A-2,28A-2,32A-2,36A-2,40A-2,48A-2; |
| Triplex roller chain: | 08A-3,10A-3,12A-3,16A-3,20A-3,24A-3,28A-3,32A-3,36A-3,40A-3,48A-3; |
|
Quadra roller chain: |
08A-4,10A-4,12A-4,16A-4,20A-4,24A-4,28A-4,32A-4,36A-4,40A-4,48A-4; |
|
Penta roller chain: |
08A-5,10A-5,12A-5,16A-5,20A-5,24A-5,28A-5,32A-5,36A-5,40A-5,48A-5; |
| DIN/ISO Standard Roller Chain (B series) | |
| Simplex roller chain: | 06B-1,08B-1,10B-1,12B-1,16B-1,20B-1,24B-1,28B-1,32B-1,40B-1,48B-1,56B-1,64B-1,72B-1; |
| Duplex roller chain: | 06B-2,08B-2,10B-2,12B-2,16B-2,20B-2,24B-2,28B-2,32B-2,40B-2,48B-2,56B-2,64B-2,72B-2; |
| Triplex roller chain: | 06B-3,08B-3,10B-3,12B-3,16B-3,20B-3,24B-3,28B-3,32B-3, 40B-3,48B-3; |
| Quadra roller chain: | 06B-4,08B-4,10B-4,12B-4,16B-4,20B-4,24B-4,28B-4,32B-4, 40B-4,48B-4; |
| Penta roller chain: | 06B-5,08B-5,10B-5,12B-5,16B-5,20B-5,24B-5,28B-5,32B-5, 40B-5,48B-5; |
