Chain Wheel Sprocket
>
|
| Place of Origin | cangzhou、china |
| Brand Name | jude |
| Certification | CE、ISO |
| Model Number | simplex, duplex and triplex chain |

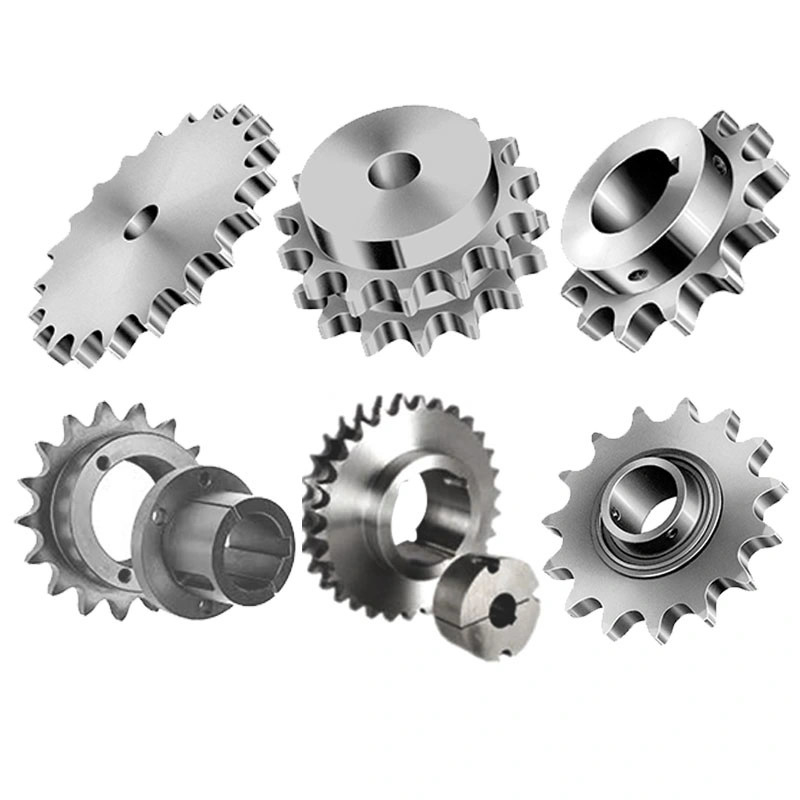

We provide different types of stock bore sprockets: Flat sprocket, single hub, both hubs, single dual.
And we also have finished bore sprocket, ASA sprocket, taper bore sprocket, double simplex sprocket, etc.
The chain wheel, as a drive or deflection for chains, has pockets tohold the chain links with a D-profile cross section with flat side surfacesparallel to the centre plane of the chain links, and outer surfaces atright angles to the chain link centre plane. The chain links are pressedfirmly against the outer surfaces and each of the side surfaces by theangled laying surfaces at the base of the pockets, and also the support
surfaces of the wheel body together with the end sides of the webs formed by the leading and trailing walls of the pocket.
| Type: | Simplex, Duplex, Triplex |
| Sprocket Model: | 3/8",1/2",5/8",3/4",1",1.25",1.50",1.75",2.00",2.25",2.00",2.25",2.50", 3" |
| Teeth Number: | 9-100 |
| Standard: | ANSI , JIS, DIN, ISO |
| Material: | 1020, 1045, SS304 , SS316; As Per User Request. |
| Performance Treatment: | Carburizing, High Frequency Treatment, Hardening and Tempering, Nitriding |
| Surface Treatment: | Black of Oxidation, Zincing, Nickelage. |
| Characteristic | Fire Resistant, Oil Resistant, Heat Resistant, Abrasive resistance, Oxidative resistance, Corrosion resistance, etc |
| Design criterion | ISO DIN ANSI & Customer Drawings |
| Application | Industrial transmission equipment |
| Package | Wooden Case / Container and pallet, or made-to-order |
| Certification: | ISO9001 SGS |
