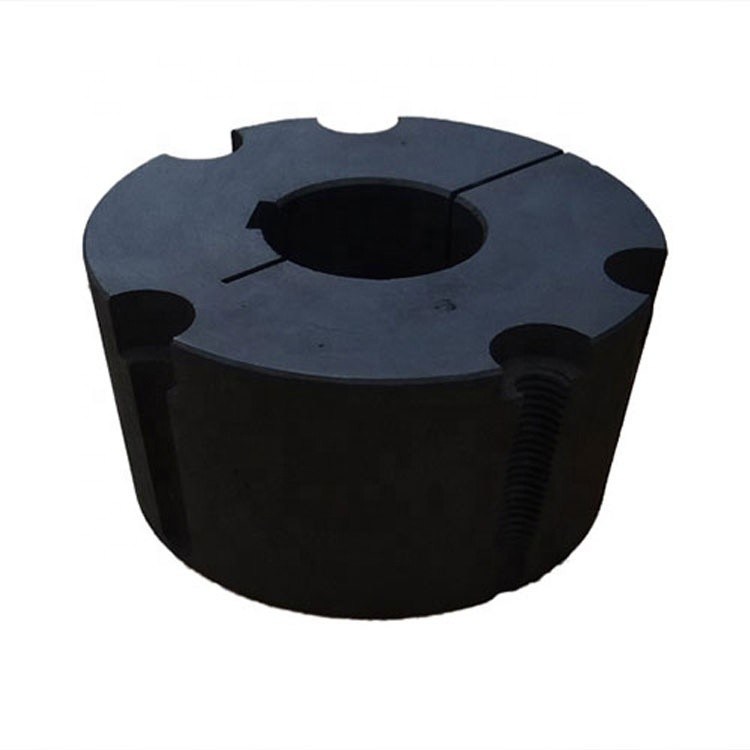

1210 1615 3525 3535 Taper Lock Bushing Cast Iron GG25 Black Color

Usage: v belt pulleys can be used on small diesel engine power, farm vehicle,tractor,car, mining equipment, processing equipment, textile machinery, packing machinery, lathe,forging machine, small horsepower motorcycle's powertrain, transmission of agricultural machinery, air compressor, reducer, dynamo, cotton ginning machine and so on

1. Material:
Cast ductile iron: QT400-18, QT450-12, QT500-7, QT600-3, QT700-2
Grey iron: HT150, HT200, HT250, HT300
Other Materials: Steel, Stainless Steel, Bronze, Brass and Aluminum;
2. Process:
Sand casting, Investment casting, permanent mould casting and die casting;
3. Application:
Mining machinery, Crane;
4. OEM design/service:
Our company can supply various pulleys (OEM) according to the customers’ drawings and requirements. Please offer us your enquiry
with detailed drawings, specifications, unit weight, quality requirements and pictures. We will supply you not only the products
with good quality but also competitive price.

Advantages of Belt pulle:

(1) Pulley drive can mitigate the impact of load;

(2) Belt pulley drive running smoothly, low noise, low vibration;

(3) Belt pulley transmission structure is simple, easy to adjust;Pulley transmission for (4) pulley manufacturing and installation precision is not as strict as meshing transmission;

(5) Belt pulley transmission has the function of overload protection;

(6) Belt pulley transmission of the two axis center distance adjustment range is large.

European standard pulley installation:

1. check the groove of the belt pulley according to the European standard to ensure that there is no scar or edge. All sizes meet the standard;

2. Clean the surface of all parts of euro standard pulley, and manufacturers of euro standard pulley, such as hub hole, cone sleeve, bolt hole, etc.Fit the cone set into the pulley so that all the screw holes are aligned.

3. Apply oil on the screw rod and thread of European standard pulley and then screw it into the mounting hole, but do not tighten it for the time being.

Iv. Clean the surface of the European standard belt pulley drive shaft, push the belt pulley with cone sleeve to the predetermined position on the shaft, and check whether the triangle belt pulley is aligned.

5. When using the European standard belt pulley keyway, it must be inserted into the hub first. There must be a certain tolerance between the keyway and the hole hub.

        Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.

        Company main products are: all kinds of couplings for machinery industry all over the word , such as radial elastic coupling, tyred coupling, universal coupling, drum gear coupling, plum flower form elastic coupling, rigid coupling oldham coupling, roller chain coupling, diaphragm coupling, coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel pin coupling, pump shaft coupling, etc..

        The concepts of our company is live on quality and develop on honor. The coupling has the advantage of high quality, low price, complete product models.Our company will be your best choice, and we look forward to cooperate with you.
