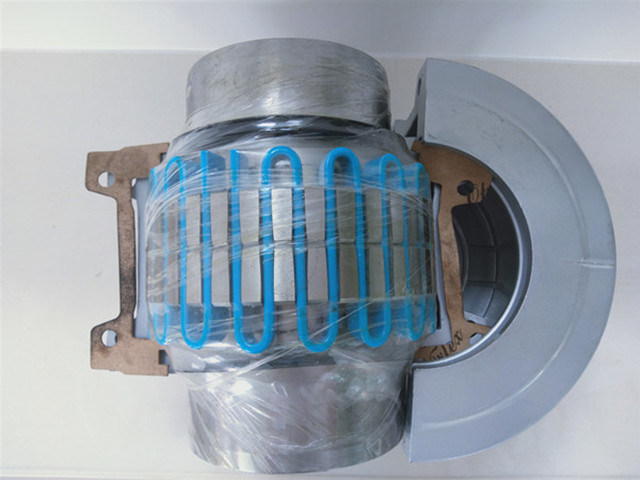

Taper Grid Coupling
>
|
|
| Place of Origin | cangzhou、china |
| Brand Name | jude |
| Certification | CE、ISO |
| Model Number | T10 |
High flexible couplings are for shaft connection of machines,they compensate for shaft misalignment,generating only low restorative forces.
The torque is conducted through elastomer flexibles, so the coupling has typically flexible rubber properties.
The flexible inserts of the grid coupling are subjected to compression. If the flexible inserts are irreparably damaged, the hub parts come into contact with metal. This "emergency operation capability" is required, etc., in the case of fire pump drives.
The motor torque is transmitted to the hub at the drive end via the shaft-hub connection, which is mostly designed as a keyway connection. The torque is transmitted to the hub on the output side with the aid of elastomer flexible inserts. The hub on the output side further transmits the torque to the driven machine or a gear unit placed in between. Because of the primarily compressionloaded elastomer flexible inserts, the coupling has a progressive torsional stiffness.
| Size | nominal | Allowable | Wt | Oil injection | Bore diameter | D1 | L | L2 | D | D2 | L1 | S | C | |
| torque | speed | (Kg) | (Kg) | |||||||||||
| (Nm) | rpm | max | min | |||||||||||
| 1020T | 52 | 4500 | 1.91 | 0.027 | 29 | 13 | 97 | 99 | 48 | 40 | / | 67 | 39 | 3.2 |
| 1030T | 150 | 4500 | 2.59 | 0.041 | 35 | 13 | 106 | 99 | 48 | 49 | / | 68 | 39 | 3.2 |
| 1040T | 250 | 4500 | 3.36 | 0.054 | 41 | 13 | 114 | 105 | 51 | 57 | / | 70 | 40 | 3.2 |
| 1050T | 435 | 4500 | 5.44 | 0.068 | 48 | 13 | 135 | 124 | 60 | 67 | / | 81 | 45 | 3.2 |
| 1060T | 680 | 4350 | 7.26 | 0.086 | 54 | 19 | 148 | 130 | 64 | 76 | / | 93 | 52 | 3.2 |
| 1070T | 990 | 4125 | 10.43 | 0.113 | 64 | 19 | 159 | 155 | 76 | 87 | / | 97 | 54 | 3.2 |
| 1080T | 2050 | 3600 | 17.69 | 0.172 | 76 | 27 | 191 | 181 | 89 | 105 | / | 116 | 65 | 3.2 |
| 1090T | 3700 | 3600 | 25.4 | 0.254 | 89 | 27 | 211 | 200 | 99 | 124 | / | 122 | 72 | 3.2 |
| 1100T | 6300 | 2440 | 42.18 | 0.426 | 102 | 41 | 251 | 246 | 121 | 142 | / | 155 | / | 4.8 |
| 1110T | 9300 | 2250 | 54.43 | 0.508 | 114 | 41 | 270 | 259 | 127 | 160 | / | 162 | / | 4.8 |
| 1120T | 13600 | 2025 | 81.19 | 0.735 | 127 | 60 | 308 | 305 | 149 | 179 | / | 192 | / | 6.4 |
| 1130T | 19800 | 1800 | 120.66 | 0.907 | 152 | 67 | 346 | 330 | 162 | 217 | / | 195 | / | 6.4 |
| 1140T | 28500 | 1650 | 177.81 | 1.134 | 184 | 67 | 384 | 375 | 184 | 254 | / | 201 | / | 6.4 |
| 1150T | 39700 | 1500 | 226.8 | 1.95 | 203 | 108 | 453 | 372 | 183 | 269 | 391 | 272 | / | 6.4 |
| 1160T | 55800 | 1350 | 308.9 | 2.812 | 229 | 121 | 502 | 403 | 198 | 305 | 437 | 278 | / | 6.4 |
| 1170T | 74500 | 1225 | 447.7 | 3.493 | 254 | 133 | 567 | 438 | 216 | 356 | 487 | 307 | / | 6.4 |
| 1180T | 10300 | 1100 | 619.15 | 3.765 | 279 | 152 | 630 | 484 | 239 | 394 | 555 | 321 | / | 6.4 |
| 1190T | 136000 | 1050 | 775.64 | 4.4 | 305 | 152 | 676 | 525 | 259 | 437 | 608 | 325 | / | 6.4 |
| 1200T | 186000 | 900 | 1057.32 | 5.625 | 330 | 178 | 757 | 565 | 279 | 498 | 660 | 356 | / | 6.4 |
| 1210T | 248000 | 820 | 1424.28 | 10.523 | 356 | 178 | 845 | 622 | 305 | 533 | 751 | 432 | / | 12.7 |
| 1220T | 335000 | 730 | 1784.89 | 16.057 | 381 | 203 | 921 | 663 | 325 | 572 | 822 | 490 | / | 12.7 |
| 1230T | 435000 | 680 | 2266.6 | 24.04 | 406 | 203 | 1003 | 704 | 345 | 610 | 905 | 546 | / | 12.7 |
| 1240T | 558000 | 630 | 2950.16 | 33.793 | 432 | 254 | 1087 | 749 | 368 | 648 | / | 648 | / | 12.7 |
| 1250T | 745000 | 580 | 3832.86 | 50.122 | 470 | 254 | 1181 | 815 | 401 | 711 | / | 699 | / | 12.7 |
| 1260T | 931000 | 540 | 4681.98 | 67.177 | 508 | 254 | 1261 | 876 | 432 | 762 | / | 762 | / | 12.7 |
| Note:Cover material: 1020-1180 Aluminum permanent mold casting; 1190-1230 Aluminum sand casting; 1240-1260 Steel plate fabrication. | ||||||||||||||
China Falk Grid Coupling Manufacturer Offers Falk Grid Couplings, T10 Type Grid Couplings, Compact Structure, Small Overall Dimension and Light Weight.
Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.
Company main products are: all kinds of couplings for machinery industry all over the word , such as radial elastic coupling, tyred coupling, universal coupling, drum gear coupling, plum flower form elastic coupling, rigid coupling oldham coupling, roller chain coupling, diaphragm coupling, coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel pin coupling, pump shaft coupling, etc..
The concepts of our company is live on quality and develop on honor. The coupling has the advantage of high quality, low price, complete product models.Our company will be your best choice, and we look forward to cooperate with you.
