Taper Grid Coupling
>
|
|
| Place of Origin | cangzhou、china |
| Brand Name | jude |
| Certification | CE、ISO |

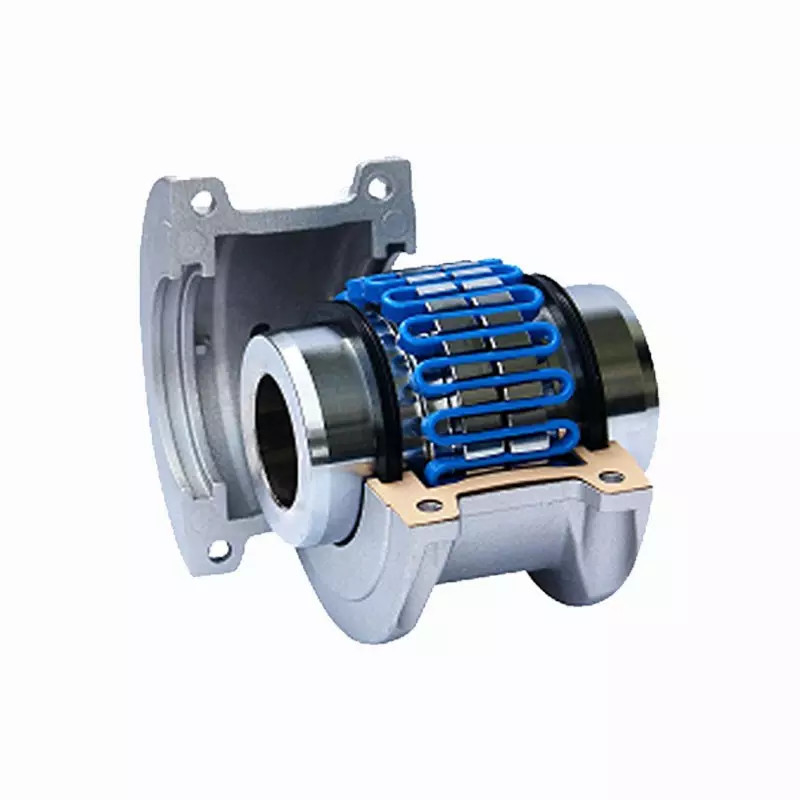

JS grid coupling vibration, JS grid coupling and long service life. JS grid coupling under high load range, JS grid coupling starting safety, high transmission efficiency, reliable operation.
Feature:
1. The serpentine spring as the elastic element, the elastic strong at the same time, greatly improves the grid coupling torque, widely used in heavy machinery and general machinery.The serpentine spring special technology department, has long service life, allowing higher speed, has good ability to compensate in the axial, radial and angle
2. High transmission efficiency, start safety. Transmission efficiency of up to 99.47%, short-time overload capacity is two times the rated torque, operation safety.
3. Simple structure, convenient assembly and disassembly, long service life
4. Damping effect is good to avoid the resonance.
| Model | Tn KN.m | (n) r/min | d | L | L0 | L2 | D | D1 | t | kg | kg | |||
| y | x | a | ||||||||||||
| JS1 | 0.045 | 4500 | 18-22 | 47 | 97 | 66 | 95 | - | 3 | 1.91 | 0.027 | 0.15 | ±0.3 | 0.076 |
| JS2 | 0.14 | 4500 | 22-35 | 47 | 97 | 68 | 105 | - | 3 | 2.59 | 0.041 | 0.15 | ±0.3 | 0.076 |
| JS3 | 0.224 | 4500 | 25-42 | 50 | 103 | 70 | 115 | - | 3 | 3.36 | 0.054 | 0.15 | ±0.3 | 0.076 |
| JS4 | 0.4 | 4500 | 32-60 | 60 | 123 | 80 | 130 | - | 3 | 5.45 | 0.068 | 0.20 | ±0.3 | 0.10 |
| JS5 | 0.63 | 4350 | 40-56 | 63 | 129 | 92 | 150 | - | 3 | 7.26 | 0.086 | 0.20 | ±0.3 | 0.127 |
| JS6 | 0.90 | 4125 | 48-65 | 76 | 155 | 95 | 160 | - | 3 | 10.4 | 0.113 | 0.20 | ±0.3 | 0.127 |
| JS7 | 1.80 | 3600 | 55-80 | 89 | 181 | 116 | 190 | - | 3 | 17.7 | 0.172 | 0.20 | ±0.3 | 0.15 |
| JS8 | 3.15 | 3600 | 65-95 | 98 | 199 | 122 | 210 | - | 3 | 25.4 | 0.254 | 0.20 | ±0.3 | 0.18 |
| JS9 | 5.6 | 2440 | 75-110 | 120 | 245 | 155 | 250 | - | 5 | 42.2 | 0.426 | 0.25 | ±0.5 | 0.20 |
| JS10 | 8.0 | 2250 | 85-120 | 127 | 259 | 162 | 270 | - | 5 | 54.5 | 0.508 | 0.25 | ±0.5 | 0.23 |
| JS11 | 12.5 | 2025 | 90-140 | 149 | 304 | 192 | 310 | - | 6 | 81.3 | 0.735 | 0.28 | ±0.6 | 0.25 |
| JS12 | 18 | 1800 | 110-170 | 162 | 330 | 195 | 346 | - | 6 | 121 | 0.908 | 0.28 | ±0.6 | 0.30 |
| JS13 | 25 | 1650 | 120-200 | 184 | 374 | 201 | 384 | - | 6 | 178 | 1.135 | 0.28 | ±0.6 | 0.33 |
| JS14 | 35.5 | 1500 | 140-200 | 183 | 372 | 271 | 450 | 391 | 6 | 234 | 1.952 | 0.30 | ±0.6 | 0.40 |
| JS15 | 50 | 1350 | 160-240 | 198 | 402 | 279 | 500 | 431 | 6 | 317 | 2.815 | 0.30 | ±0.6 | 0.45 |
| JS16 | 63 | 1225 | 180-280 | 216 | 438 | 304 | 566 | 487 | 6 | 448 | 3.496 | 0.30 | ±0.6 | 0.5 |
| JS17 | 90 | 1100 | 200-300 | 239 | 484 | 322 | 630 | 555 | 6 | 620 | 3.76 | 0.38 | ±0.6 | 0.56 |
| JS18 | 125 | 1050 | 240-320 | 260 | 526 | 356 | 675 | 608 | 6 | 776 | 4.4 | 0.38 | ±0.6 | 0.6 |
| JS19 | 160 | 900 | 280-360 | 280 | 566 | 355 | 756 | 660 | 6 | 1058 | 5.63 | 0.38 | ±1.3 | 0.68 |
| JS20 | 224 | 820 | 300-380 | 305 | 623 | 432 | 845 | 751 | 13 | 1426 | 10.5 | 0.46 | ±1.3 | 0.74 |
| JS21 | 315 | 730 | 320-420 | 325 | 663 | 490 | 920 | 822 | 13 | 1787 | 16.1 | 0.46 | ±1.3 | 0.8 |
| JS22 | 400 | 680 | 340-450 | 345 | 703 | 546 | 1000 | 905 | 13 | 2269 | 24.1 | 0.48 | ±1.3 | 0.89 |
| JS23 | 500 | 630 | 360-480 | 368 | 749 | 648 | 1087 | - | 13 | 2951 | 33.8 | 0.48 | ±1.3 | 0.96 |
| JS24 | 630 | 580 | 400-460 | 401 | 815 | 698 | 1180 | - | 13 | 3836 | 50.2 | 0.5 | ±1.3 | 1.07 |
| JS25 | 800 | 540 | 420-500 | 432 | 877 | 762 | 1260 | - | 13 | 4686 | 67.2 | 0.5 | ±1.3 | 1.77 |
