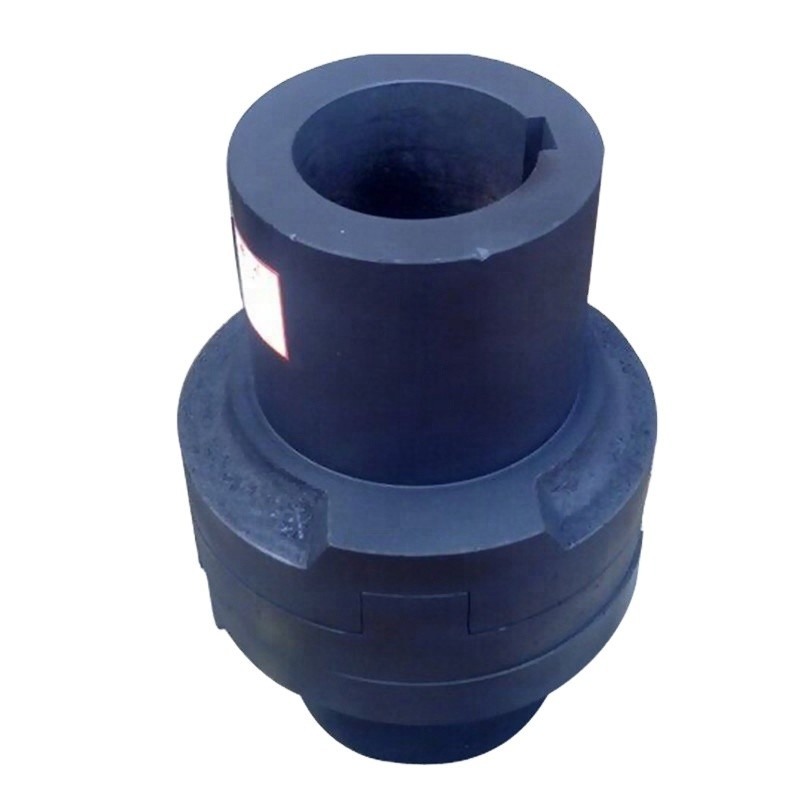

Introduction Of SL Flexible Oldham Coupling
The SL Flexible Oldham Coupling belongs to slider coupling, SL slider coupling the two end surface is provided with a middle slider radial grooves are respectively provided with tenon and half coupling components, the middle to both ends of a sliding block tenon perpendicular to each other, respectively inserted and groove 2.5 coupling, forming a moving pair, if the amount of axial misalignment or deflection, motion slider in the groove sliding, so to add lubricating oil working face groove and the slider, if the two are not concentric, when the speed is high, because the eccentric slider will produce large centrifugal force and wear to the shaft and bring additional load therefore only suitable for low speed the load transfer and occasions.
|
| Size | Torque Tn(N·M) |
Speed [n]r/min |
Bore Dia d |
D | D1 | L | H | S | Inertia (kg.m 2 ) |
Weight (kg) |
| SL70 | 120 | 250 | 15～18 | 70 | 32 | 42 | 14 | 0.5 | 0.002 | 1.5 |
| SL90 | 250 | 250 | 20～30 | 90 | 45 | 52 | 14 | 0.008 | 2.6 | |
| SL100 | 500 | 250 | 36～40 | 100 | 60 | 70 | 19 | 0.026 | 5.5 | |
| SL130 | 800 | 250 | 45～50 | 130 | 80 | 90 | 19 | 0.07 | 10 | |
| SL150 | 1250 | 250 | 55～60 | 150 | 95 | 112 | 19 | 0.14 | 15.5 | |
| SL170 | 2000 | 250 | 65～70 | 170 | 105 | 125 | 24 | 0.25 | 22.4 | |
| SL190 | 3200 | 250 | 75～80 | 190 | 110 | 140 | 29 | 0.5 | 31.5 | |
| SL210 | 5000 | 250 | 85～90 | 210 | 130 | 160 | 33 | 1.0 | 0.9 | 45 |
| SL240 | 8000 | 250 | 95～100 | 240 | 140 | 180 | 33 | 1.6 | 59.5 | |
| SL260 | 9000 | 250 | 100～110 | 260 | 160 | 190 | 33 | 2 | 76 | |
| SL280 | 10000 | 100 | 110～120 | 280 | 170 | 200 | 33 | 3 | 94.3 | |
| SL300 | 13000 | 100 | 120～130 | 300 | 180 | 210 | 43 | 4.3 | 111 | |
| SL320 | 16000 | 100 | 130～140 | 320 | 190 | 220 | 43 | 5.7 | 129 | |
| SL340 | 20000 | 100 | 150 | 340 | 210 | 250 | 48 | 8.4 | 162 | |
| SL360 | 32500 | 100 | 160 | 360 | 240 | 280 | 48 | 19.2 | 258 | |
| SL400 | 38700 | 80 | 170 | 400 | 260 | 300 | 48 | 26.1 | 305 | |
| SL460 | 63000 | 70 | 200 | 460 | 300 | 350 | 58 | 62.9 | 560 |
Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.
Company main products are: all kinds of couplings for machinery industry all over the word , such as radial elastic coupling, tyred coupling, universal coupling, drum gear coupling, plum flower form elastic coupling, rigid coupling oldham coupling, roller chain coupling, diaphragm coupling, coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel pin coupling, pump shaft coupling, etc..
The concepts of our company is live on quality and develop on honor. The coupling has the advantage of high quality, low price, complete product models.Our company will be your best choice, and we look forward to cooperate with you.
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2:Do you provide samples ? is it free or extra ?
A: : Yes, we could offer the sample but not for free.Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you.
Q3: How long is your delivery time?
A: Generally it is 10-15 days if the goods are in stock. or it is 7-25 days if the goods are not in stock, it is according to quantity.
Q4:How long is your warranty?
A: Our Warranty is 12 month.
Q5 :Do you have inspection procedures for coupling ?
A:100% self-inspection before packing
Q6. What’s your payment?
A:1) 100% T/T. 2) 30% in advance, others before shipment. 3) L/C Q7:Can I have a visit to your factory before the order? A: Sure,welcome to visit our factory.
