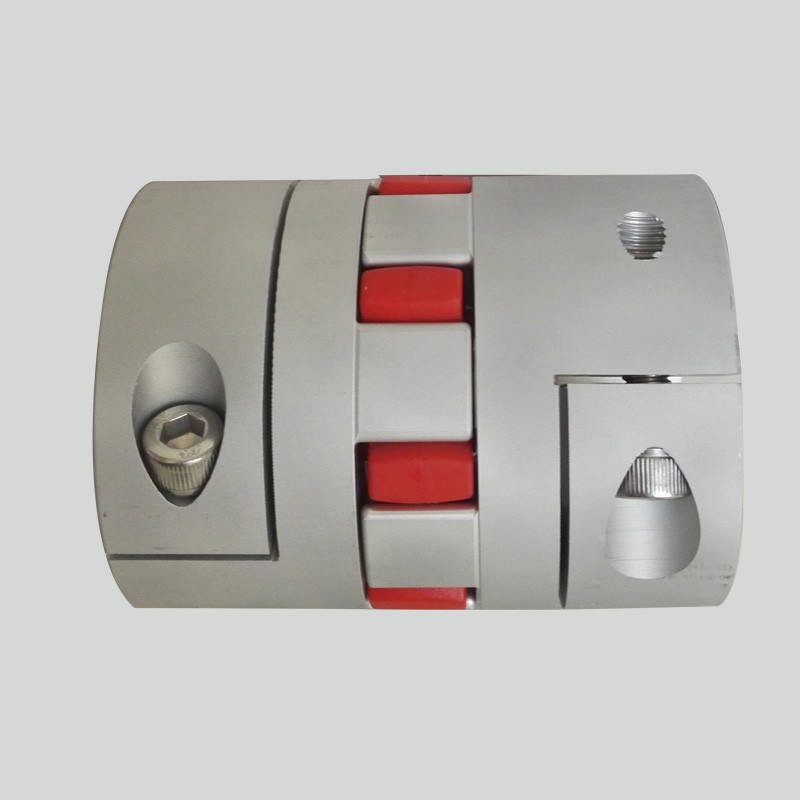

XL GE Aluminum Flexible Coupling Clamp Rotex Flexible Jaw Coupling


XL GE Rotex Aluminum Clamp Flexible Jaw Coupling, The Same Type Of Rotex Coupling 98 A Spider

The XL clamping star coupling uses engineering plastics as elastic elements, and is suitable for connecting two coaxial transmission shafts. -35000NM, working temperature -35-+80 degrees Celsius and interchangeable with German ROTEX couplings. When the elastic coupling transmits unstable torque, the elastic deformation of the elastic element increases or decreases with the change of torque. Due to the instability of the deformation, external friction is generated on the contact surfaces of the elastic elements in relative motion, and there is also internal friction inside the elastic elements. Couplings lubricated with oil or grease also produce viscous friction of the fluid. These frictions will absorb a part of the kinetic energy (damping energy) and convert it into heat energy, which will increase the temperature, which is the damping effect of the coupling. The damping effect can realize the buffering and damping of vibration.

With the continuous development of power machinery in the direction of high speed and high power, elastic couplings with buffering, vibration reduction and noise reduction are more and more widely used. It can adopt different characteristic parameters according to different working conditions, so as to achieve optimal reduction The effect of vibration clipping is an important part of the mechanical power transmission system.
