Flexible Jaw Coupling
>
|
|
| Place of Origin | cangzhou、china |
| Brand Name | jude |
| Certification | CE、ISO |
| Model Number | AFN |

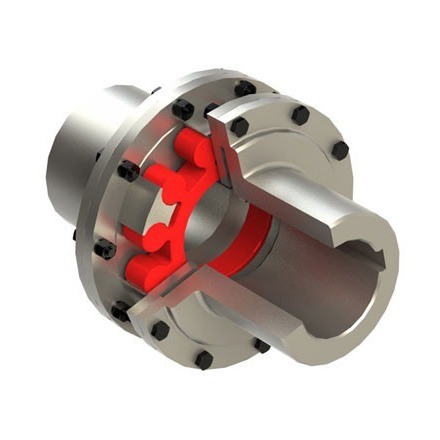

With type AFN the spider can be replaced when installedwithout having to disassemble the driving and driven side.ROTEX® AFN coupling as a flange typeROTEX AFN is a torsionally flexible elastomer coupling as a double-flange type and particularly suitable for applications in heavy engineering.Design AFN of the ROTEX elastomer coupling is characterized by the double flange type allowing for radial assembly and disassembly of the shaft coupling or elastomer without displacing the driving or driven side.The flange hub 4N of the torsionally flexible jaw coupling as a flange type ROTEX AFN is made of steel and the driving flange 3Na is made of GJS.ROTEX® BFN coupling as a flange typeROTEX BFN is a torsionally flexible elastomer coupling as a flange type (flange coupling) and particularly suitable for applications in heavy engineering.The BFN design of the ROTEX elastomer coupling is characterized by the flange type allowing for radial assembly and disassembly of the shaft coupling or the elastomer without displacing the driving or driven side.
| Double flange design type AFN | |||||||||||||
| Size | Max. finish bore d1 | Dimensions[mm] | Cap screws | ||||||||||
| DH | DF | dH | L2 | L3 | E | E1 | s | b | L | M×l | z | ||
| 24 | 27 | 55 | 36 | 27 | 30 | 30.50 | 18 | 33 | 2 | 14 | 94 | M5×16 | 8 |
| 28 | 30 | 65 | 42 | 30 | 35 | 35.5 | 20 | 39 | 2.5 | 15 | 110 | M6×20 | 8 |
| 38 | 38 | 80 | 52 | 38 | 45 | 45.5 | 24 | 43 | 3 | 18 | 134 | M8×22 | 8 |
| 42 | 45 | 95 | 62 | 46 | 50 | 51 | 26 | 48 | 3 | 20 | 150 | M8×25 | 12 |
| 48 | 50 | 105 | 70 | 51 | 56 | 57 | 28 | 50 | 3.5 | 21 | 164 | M8×25 | 12 |
| 55 | 60 | 120 | 80 | 60 | 65 | 66 | 30 | 60 | 4 | 22 | 192 | M10×30 | 8 |
| 65 | 70 | 135 | 94 | 68 | 75 | 76 | 35 | 65 | 4.5 | 26 | 217 | M10×30 | 12 |
| 75 | 80 | 160 | 108 | 80 | 85 | 86.5 | 40 | 75 | 5 | 30 | 248 | M12×40 | 15 |
| 90 | 105 | 200 | 142 | 100 | 100 | 101.5 | 45 | 82 | 5.5 | 34 | 285 | M16×40 | 15 |
| 100 | 115 | 225 | 158 | 113 | 110 | 111.5 | 50 | 97 | 3 | 38 | 320 | M16×50 | 15 |
| 110 | 130 | 255 | 178 | 127 | 120 | 122 | 55 | 103 | 3.5 | 42 | 347 | M20×50 | 15 |
| 125 | 150 | 290 | 206 | 147 | 140 | 142 | 60 | 116 | 7 | 46 | 400 | M20×60 | 15 |
| 140 | 170 | 320 | 235 | 165 | 155 | 157.5 | 65 | 128 | 7.5 | 50 | 443 | M20×60 | 15 |
| 160 | 200 | 370 | 270 | 190 | 175 | 177.5 | 75 | 146 | 9 | 57 | 501 | M24×70 | 15 |
| 180 | 230 | 420 | 315 | 220 | 195 | 198 | 85 | 159 | 10.5 | 64 | 555 | M24×80 | 18 |
Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.
Company main products are: all kinds of couplings for machinery industry all over the word , such as radial elastic coupling, tyred coupling, universal coupling, drum gear coupling, plum flower form elastic coupling, rigid coupling oldham coupling, roller chain coupling, diaphragm coupling, coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel pin coupling, pump shaft coupling, etc..
The concepts of our company is live on quality and develop on honor. The coupling has the advantage of high quality, low price, complete product models.Our company will be your best choice, and we look forward to cooperate with you.
