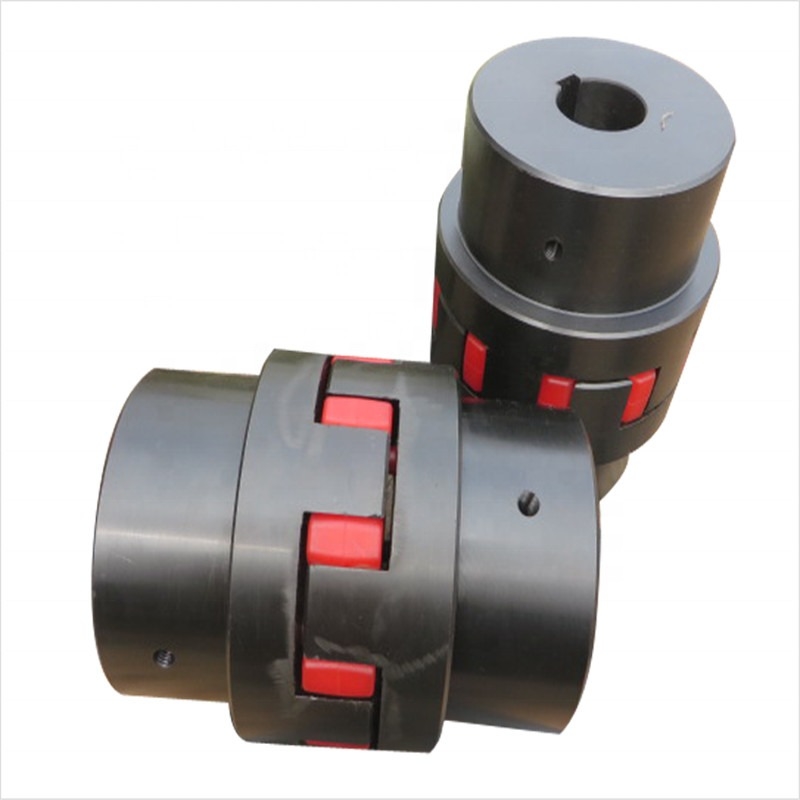

Flexible Jaw Coupling
>
|
|
| Place of Origin | cangzhou、china |
| Brand Name | jude |
| Certification | CE、ISO |
| Model Number | Rotex 38 XL 4 |
A coupling can interchange and replacement of lovejoy coupling is a device used to connect two shafts together at their ends for the purpose of transmitting power. The primary purpose of couplings is to join two pieces of rotating equipment while permitting some degree of misalignment or end movement or both. In a more general context, a coupling can also be a mechanical device that serves to connect the ends of adjacent parts or objects. Couplings do not normally allow disconnection of shafts during operation, however there are torque limiting couplings which can slip or disconnect when some torque limit is exceeded. Selection, installation and maintenance of couplings can lead to reduced maintenance time and maintenance cost.
Coupling is a jaw type coupling that works for a variety of light duty to heavy duty motors used in electric power transmission.
This is one of our safest types of products. The reason being that these couplings work even when the elastomer fails and there is no metal to metal contact.
They perform in well-standing oil, grease, moisture, sand, and dirt and nearly 850,000 bore combinations that can be customised as per the customer's needs.
They are used in light-weight, medium, or heavy electrical motors and devices for power transmission through internal combustion.
| Size | Type | Torque Tn (N.m) | Max Speed [n] (r/min) | Shaft hole DIA di dz | Hole Length L | D | D: | Dz | E | S | Moment of inertia (Kg-m2) | Weight (kg) |
| GS19 | XL1 | 34 | 19000 | 6-19-24 | 25 | 40 | 32 | 40 | 16 | 2 | 0.0008 | 0.328 |
| GS24 | XL2 | 120 | 14000 | 8-24-28 | 30 | 55 | 40 | 55 | 18 | 2 | 0.0003 | 0.66 |
| GS28 | XL3 | 320 | 11800 | 10-28-38 | 35 | 65 | 48 | 65 | 20 | 2.5 | 0.0007 | 1.16 |
| GS38 | XL4 | 650 | 9500 | 12-38-45 | 45 | 80 | 66 | 78 | 24 | 3 | 0.002 | 2.27 |
| GS42 | XL5 | 900 | 8000 | 14-42-55 | 50 | 98 | 75 | 94 | 26 | 3 | 0.005 | 3.57 |
| GS48 | XL6 | 1050 | 7100 | 1548-60 | 56 | 105 | 85 | 104 | 28 | 3.5 | 0.008 | 4.80 |
| GS55 | XL7 | 1250 | 6300 | 20-55-70 | 65 | 120 | 98 | 118 | 30 | 4 | 0.016 | 7.37 |
| GS65 | XL8 | 1280 | 5600 | 22~65-75 | 75 | 135 | 115 | 134 | 35 | 4.5 | 0.031 | 10.89 |
| GS75 | XL9 | 2930 | 4750 | 30-75-90 | 85 | 160 | 135 | 158 | 40 | 5 | 0.068 | 17.73 |
| GS90 | XL10 | 7200 | 3750 | 40-90-100 | 100 | 200 | 160 | 180 | 45 | 5.5 | 0.159 | 29.60 |
| GS100 | XL11 | 9900 | 3350 | 50-100-110 | 110 | 225 | 180 | 200 | 50 | 6 | 0.277 | 41 |
| GS110 | XL12 | 12000 | 3000 | 60-110-125 | 120 | 255 | 200 | 230 | 55 | 6.5 | 0.51 | 58.6 |
| XL13 | 15000 | 2650 | 60-125-145 | 140 | 290 | 230 | 265 | 60 | 7 | 1 | 88.4 | |
| XL14 | 22000 | 2360 | 60-140-165 | 155 | 320 | 255 | 300 | 65 | 7.5 | 17 | 120.6 | |
| XL15 | 30000 | 2000 | 80-160-190 | 175 | 370 | 290 | 345 | 75 | 9 | 3.35 | 179.1 | |
| XL16 | 35000 | 1800 | 85-180-220 | 195 | 420 | 325 | 400 | 85 | 10.5 | 6.37 | 261.0 |
Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.
Company main products are: all kinds of couplings for machinery industry all over the word , such as radial elastic coupling, tyred coupling, universal coupling, drum gear coupling, plum flower form elastic coupling, rigid coupling oldham coupling, roller chain coupling, diaphragm coupling, coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel pin coupling, pump shaft coupling, etc..
The concepts of our company is live on quality and develop on honor. The coupling has the advantage of high quality, low price, complete product models.Our company will be your best choice, and we look forward to cooperate with you.
