Tyre Flex Coupling
>
|
| Place of Origin | cangzhou、china |
| Brand Name | jude |
| Certification | CE、ISO |
| Model Number | Rubber Tyre Flex Coupling |

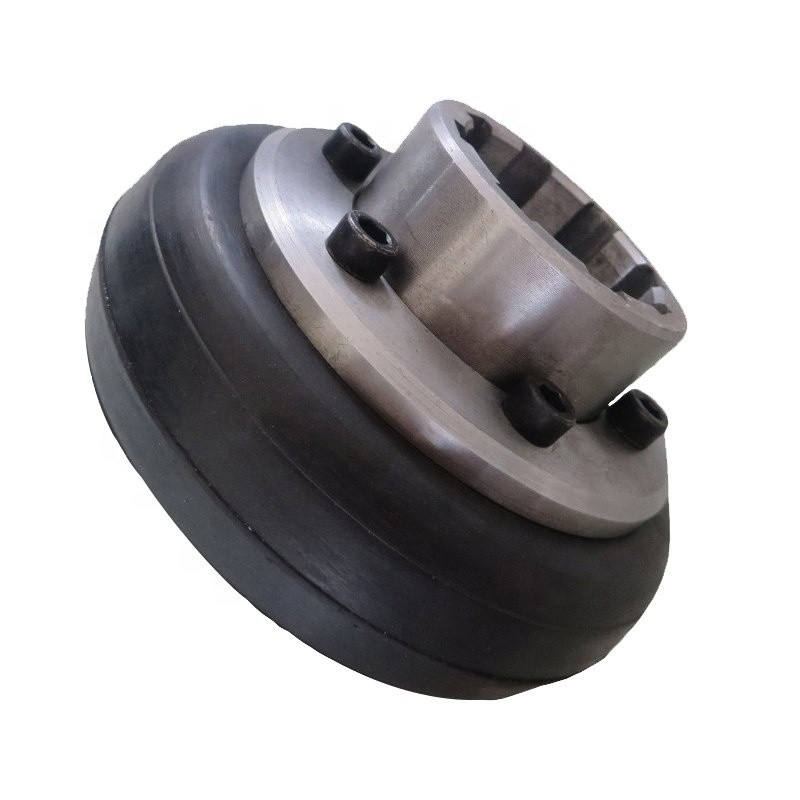

High Precision Transmission Customized Rubber Flexible Tyre Coupling
Advantage of flex tire coupling
1. Easy to maintain, no need the tooled can install
2. Can undertake high torque
3. Have the good buffer
4. Flexibility, large damping, large compensation dosage
Design feature of flex tire coupling
1. Plastic components( tyres) and metal plates made into a whole by sulfur and felting. Connecting the 2 half-coupling directly by bolts when installing.
2. Flexibility, large damping, large compensation dosage.
3. Simple designing ,easy for assembling and disassembling. The tyres can be replaced without moving 2 half-coupling.
4. Disadvantage, large axial power will be brought on the driven end as the rotate angle increasing.
Technical data of flex tire coupling
| Type |
bolt-number Md*L |
allowable shaft hole |
Main size |
Length of shaft hole |
Allowable Rotating speed |
moment of inertia |
Weight |
Slide torque |
||
| L | (n | Tn | ||||||||
| d dz | D | H | D1 | Y J1 Z1 | r/min | kg | kg | N.m | ||
| UL1 | 12-M5*12 | 10 -- 18 | 80 | 20 | 29 | 22-42 | 5000 | 0.0003 | 0.7 | 10 |
| UL2 | 12-M6*14 | 12 -- 22 | 100 | 26 | 36 | 27-52 | 5000 | 0.0008 | 1.2 | 25 |
| UL3 | 12-M8*15 | 18 -- 25 | 120 | 32 | 40 | 30-62 | 4800 | 0.0022 | 1.8 | 63 |
| UL4 | 12-M8*18 | 20 -- 30 | 140 | 38 | 48 | 38-82 | 4500 | 0.0044 | 3 | 100 |
| UL5 | 12-M10*20 | 24 -- 35 | 160 | 45 | 56 | 38-82 | 4000 | 0.0084 | 4.6 | 160 |
| UL6 | 12-M10*22 | 25--40 | 180 | 50 | 65 | 44-112 | 3600 | 0.00164 | 7.1 | 250 |
| UL7 | 12-M10*25 | 32 -- 48 | 200 | 56 | 78 | 60-112 | 3200 | 0.0029 | 10.9 | 315 |
| UL8 | 12-M12*28 | 38 -- 50 | 220 | 63 | 80 | 60-112 | 3000 | 0.0045 | 13 | 400 |
| UL9 | 16-M12*30 | 42 -- 60 | 250 | 71 | 100 | 84-142 | 2800 | 0.0089 | 20 | 630 |
| UL10 | 16-M12*35 | 45 --70 | 280 | 80 | 120 | 84-142 | 2400 | 0.0159 | 30.6 | 800 |
| UL11 | 16-M16*40 | 50 -- 75 | 320 | 90 | 125 | 84-142 | 2100 | 0.0279 | 39 | 1000 |
| UL12 | 12-M16*45 | 55 -- 85 | 360 | 100 | 150 | 84-172 | 2000 | 0.535 | 59 | 1600 |
| UL13 | 16-M16*50 | 63 --95 | 400 | 110 | 170 | 107-172 | 1800 | 0.896 | 81 | 2500 |
| UL14 | 24-M20*60 | 75 -- 110 | 480 | 130 | 210 | 107-212 | 1600 | 2.261 | 145 | 4000 |
| UL15 | 24-M20*68 | 85 --125 | 560 | 150 | 255 | 132-212 | 1200 | 4.645 | 222 | 6300 |
| UL16 | 16-M24*68 | 100 -- 140 | 630 | 180 | 280 | 167-252 | 1000 | 8.092 | 302 | 10000 |
| UL17 | 24-M24*76 | 120 -- 160 | 750 | 210 | 350 | 167-302 | 900 | 20.017 | 561 | 16000 |
| UL18 | 24-M30*86 | 140 --180 |
Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.
Company main products are: all kinds of couplings for machinery industry all over the word , such as radial elastic coupling, tyred coupling, universal coupling, drum gear coupling, plum flower form elastic coupling, rigid coupling oldham coupling, roller chain coupling, diaphragm coupling, coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel pin coupling, pump shaft coupling, etc..
The concepts of our company is live on quality and develop on honor. The coupling has the advantage of high quality, low price, complete product models.Our company will be your best choice, and we look forward to cooperate with you.
