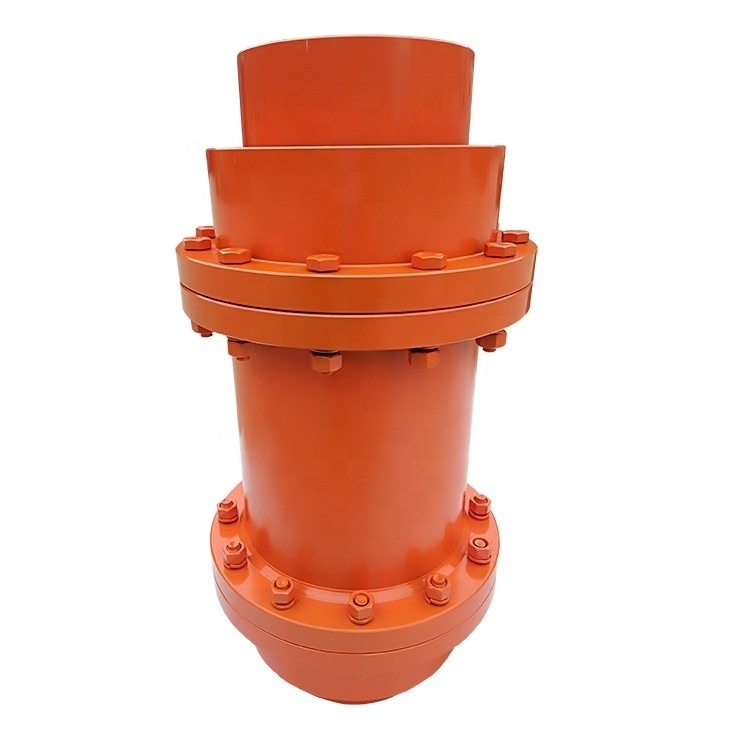

Introduction Of WGT Drum Gear Shaft Coupling With Middle Set
WGT Drum Gear Shaft Coupling With Middle Set divided into I type and II type two, WGT connected set of drumgear coupling type I with type WGT connected gland, a drum gear coupling type II without gland type.
WGT Drum Gear Shaft Coupling With Middle Set is an improved type of gear coupling, gear coupling can be compared with the straight allows larger angular displacement, can improve the tooth contact conditions, and improve the ability to transfer torque, prolong the service life, with angular displacement along the contact state of gear width, consisting of inner gear and the same number of teeth of the flange half band coupling parts etc..
When WGT is connected with the middle sleeve drum gear coupling, the relative angular displacement of two shaft will occur when working. The relative periodic sliding of the inner and outer teeth will cause the relative sliding of the shaft, which will inevitably form the tooth wear and power consumption. Therefore, the gear coupling must work well and sealed. The toothed coupling has small radial size and large load capacity. It is usually used for shafting transmission under low speed and heavy load conditions. The high accuracy and dynamic balancing gear coupling can be used for high speed transmission.
| WGT Drum Gear Coupling |
|||||||||||||||
| Size | Torque | Bore Dia | Length | D | D1 | D2 | D3 | D4 | B | B1 | H | F | C | C2 | |
| Tn | |||||||||||||||
| N.m | d1,d2 | L | I | II | |||||||||||
| WGT1 | 800 | 12.14 | 32 | 122 | 115 | 98 | 88 | 60 | 58 | 50 | 75 | 30 | 30 | -- | -- |
| 16.18.19 | 42 | 20 | 14 | -- | |||||||||||
| 20.22.24 | 52 | 10 | 4 | -- | |||||||||||
| 25.28 | 62 | 3 | 3 | 18 | |||||||||||
| 30.32.35.38 | 82 | 3 | 3 | 12 | |||||||||||
| 40.42 | 112 | 3 | 3 | 12 | |||||||||||
| WGT2 | 1400 | 22.24 | 52 | 150 | 145 | 118 | 108 | 77 | 68 | 52 | 80 | 30 | 20 | 4 | -- |
| 25.28 | 62 | 10 | 3 | -- | |||||||||||
| 30.32.35.38 | 82 | 3 | 3 | 16 | |||||||||||
| 40.42.45.48.50.55.56 | 112 | 3 | 3 | 16 | |||||||||||
| WGT3 | 2800 | 22.24 | 52 | 170 | 165 | 140 | 125 | 90 | 80 | 54 | 80 | 30 | 33 | 7 | -- |
| 25.28 | 62 | 23 | 3 | -- | |||||||||||
| 30.32.35.38 | 82 | 3 | 3 | 16 | |||||||||||
| 40.42.45.48.50.55.56 | 112 | 3 | 3 | 16 | |||||||||||
| 60.63 | 142 | 3 | 3 | 16 | |||||||||||
| WGT4 | 5000 | 30.32.35.38 | 82 | 200 | 195 | 160 | 145 | 112 | 90 | 58 | 100 | 30 | 13 | 3 | -- |
| 40.42.45.48.50.55.56 | 112 | 3 | 3 | 17 | |||||||||||
| 60.63.65.70.71.75 | 142 | 3 | 3 | 17 | |||||||||||
| 80 | 172 | 3 | 3 | 17 | |||||||||||
| WGT5 | 8000 | 30.32.35.38 | 82 | 225 | 215 | 180 | 168 | 128 | 100 | 63 | 100 | 30 | 23 | 3 | -- |
| 40.42.45.48.50.55.56 | 112 | 3 | 3 | 19 | |||||||||||
| 60.63.65.70.71.75 | 142 | 3 | 3 | 19 | |||||||||||
| 80.85.90 | 172 | 3 | 3 | 19 | |||||||||||
| WGT6 | 11200 | 32.35.38 | 82 | 245 | 230 | 200 | 185 | 145 | 112 | 67 | 100 | 30 | 35 | 5 | -- |
| 40.42.45.48.50.55.56 | 112 | 5 | 5 | -- | |||||||||||
| 60.63.65.70.71.75 | 142 | 5 | 5 | 20 | |||||||||||
| 80.85.90.95 | 172 | 5 | 5 | 20 | |||||||||||
| 100 | 212 | 5 | 5 | 20 | |||||||||||
| WGT7 | 16000 | 32.35.38 | 82 | 272 | 265 | 230 | 210 | 160 | 122 | 74 | 120 | 30 | 45 | 5 | -- |
| 40.42.45.48.50.55.56 | 112 | 15 | 5 | -- | |||||||||||
| 60.63.65.70.71.75 | 142 | 5 | 5 | 20 | |||||||||||
| 80.85.90.95 | 172 | 5 | 5 | 20 | |||||||||||
| 100.110 | 212 | 5 | 5 | 20 | |||||||||||
| WGT8 | 22400 | 55.56 | 112 | 290 | 272 | 245 | 225 | 176 | 136 | 81 | 120 | 30 | 29 | 5 | -- |
| 60.63.65.70.71.75 | 142 | 5 | 5 | 34 | |||||||||||
| 80.85.90.96 | 172 | 5 | 5 | 20 | |||||||||||
| 100.110.120.125 | 212 | 5 | 5 | 38 | |||||||||||
| WGT9 | 28000 | 65.70.71.75 | 142 | 315 | 305 | 265 | 245 | 190 | 140 | 88 | 155 | 30 | 5 | 5 | 28 |
| 80.85.90.95 | 172 | 5 | 5 | 28 | |||||||||||
| 100.110.120.125 | 212 | 5 | 5 | 28 | |||||||||||
| 130.140 | 252 | 5 | 5 | 28 | |||||||||||
| WGT10 | 45000 | 75 | 142 | 355 | 340 | 300 | 280 | 225 | 165 | 98 | 155 | 30 | 28 | 5 | -- |
| 80.85.90.95 | 172 | 5 | 5 | 38 | |||||||||||
| 100.110.120.125 | 212 | 5 | 5 | 28 | |||||||||||
| 130.140.150 | 252 | 5 | 5 | 28 | |||||||||||
| 160 | 302 | 5 | 5 | 28 | |||||||||||
| WGT11 | 63000 | 85.90.95 | 172 | 412 | 385 | 345 | 325 | 256 | 180 | 112 | 175 | 40 | 15 | 8 | -- |
| 100.110.120.125 | 212 | 8 | 8 | 32 | |||||||||||
| 130.140.150 | 252 | 8 | 8 | 32 | |||||||||||
| 160.170.180 | 302 | 8 | 8 | 32 | |||||||||||
| WGT12 | 90000 | 120.125 | 212 | 440 | 435 | 375 | 360 | 288 | 210 | 125 | 205 | 40 | 8 | 8 | 45 |
| 130.140.150 | 252 | 8 | 8 | 32 | |||||||||||
| 160.170.180 | 302 | 8 | 8 | 32 | |||||||||||
| 190.200 | 352 | 8 | 8 | 32 | |||||||||||
| WGT13 | 125000 | 145.150 | 252 | 490 | 480 | 425 | 400 | 320 | 235 | 136 | 205 | 50 | 8 | 8 | 38 |
| 160.170.180 | 302 | 8 | 8 | 32 | |||||||||||
| 190.200.220 | 352 | 8 | 8 | 32 | |||||||||||
| WGT14 | 180000 | 160.170.180 | 302 | 545 | 540 | 462 | 440 | 362 | 265 | 158 | 240 | 50 | 10 | 8 | 32 |
| 190.200.220 | 352 | 10 | 8 | 32 | |||||||||||
| 240.250.260 | 410 | 10 | 8 | 10 | |||||||||||
| WGT15 | 250000 | 160.170.180 | 302 | 580 | -- | 488 | -- | 400 | 280 | -- | 240 | 50 | 10 | -- | 43 |
| 190.200.220 | 352 | 10 | -- | 32 | |||||||||||
| 240.250.260 | 410 | 10 | -- | 10 | |||||||||||
| 270 | 470 | 10 | -- | 10 | |||||||||||
| WGT16 | 315000 | 180 | 302 | 650 | -- | 560 | -- | 440 | 300 | -- | 240 | 50 | 12 | -- | 63 |
| 190.200.220 | 352 | 12 | -- | 32 | |||||||||||
| 240.250.260 | 410 | 12 | -- | 12 | |||||||||||
| 280.300 | 470 | 12 | -- | 12 | |||||||||||
| WGT17 | 400000 | 200.220 | 352 | 690 | -- | 600 | -- | 460 | 325 | -- | 280 | 50 | 12 | -- | 48 |
| 240.250.260 | 410 | 12 | -- | 12 | |||||||||||
| 280.300.320 | 470 | 12 | -- | 12 | |||||||||||
| WGT18 | 500000 | 220 | 352 | 750 | -- | 650 | -- | 510 | 350 | -- | 280 | 60 | 12 | -- | 73 |
| 240.250.260 | 410 | 12 | -- | 12 | |||||||||||
| 280.300.320 | 470 | 12 | -- | 12 | |||||||||||
| 340.360 | 550 | 12 | -- | 12 | |||||||||||
| WGT19 | 630000 | 240.250.260 | 410 | 775 | -- | 690 | -- | 535 | 372 | -- | 350 | 60 | 12 | -- | 12 |
| 280.300.320 | 470 | 12 | -- | 12 | |||||||||||
| 340.360.380 | 550 | 12 | -- | 12 | |||||||||||
