Flexible Gear Coupling
>
|
|
| Place of Origin | cangzhou、china |
| Brand Name | jude |
| Certification | CE、ISO |
| Model Number | G10 G20 |

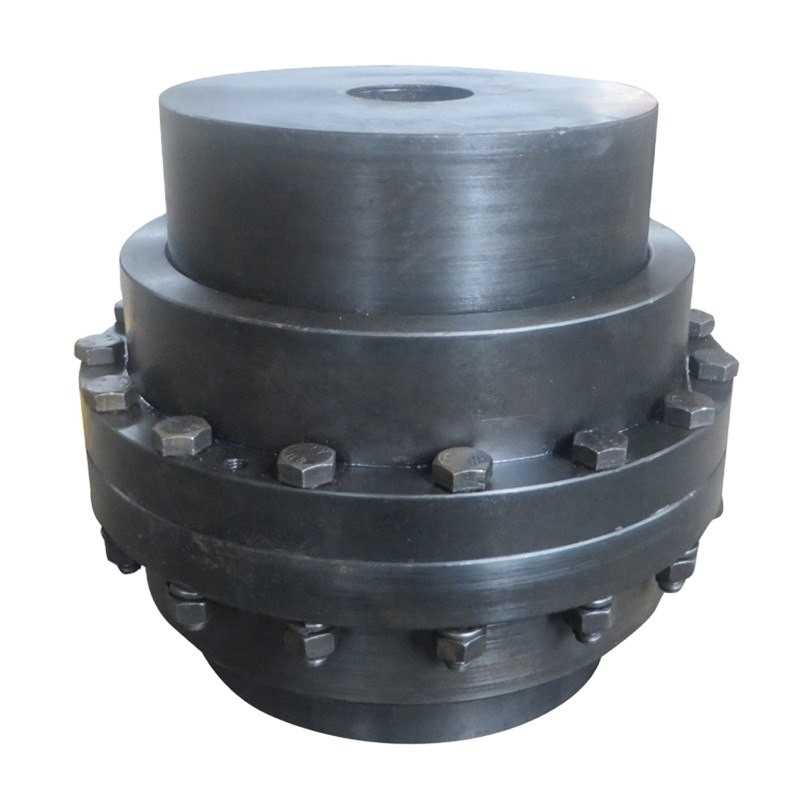

Feature of the GIICL gear shaft coupling
(1) Strong bearing capacity.
(2) The compensation of angular displacement is large
(3) The end of the outer tooth is shaped like a horn, which makes the mounting and dismounting of inner and outer teeth very convenient
(4) Transmission efficiency is up to 99.7%
Type G20 Standard Flanged Sleeve Double Engagement
For Sizes 1010G -1055G
Type G10 Shrouded Bolts furnished only when specified on order
| Size | Torque Rating (Ib-in) | Allow Speed RPM | Max Bore | Min Bore | CpIgWtWith No Bore (b) | LubeWt (lb) | A | B | C | D | F | H | J | M | GAP | |
| G10 | G20 | |||||||||||||||
| 1010G | 10,080 | 8,000 | 1.875 | 0.50 | 9 | 10 | 0.09 | 4.56 | 3.50 | 1.69 | 2.70 | 3.30 | 0.55 | 1.53 | 2.00 | 0.125 |
| 1015G | 20,790 | 6,500 | 2.375 | 0.75 | 17 | 20 | 0.16 | 6.00 | 4.00 | 1.94 | 3.40 | 4.14 | 0.75 | 1.88 | 2.40 | 0.125 |
| 1020G | 37,800 | 5,600 | 2.875 | 1.00 | 30 | 35 | 0.25 | 7.00 | 5.00 | 2.44 | 4.14 | 4.98 | 0.75 | 2.34 | 3.00 | 0.125 |
| 1025G | 66,150 | 5,000 | 3.625 | 1.25 | 55 | 65 | 0.50 | 8.38 | 6.25 | 3.03 | 5.14 | 6.10 | 0.86 | 2.82 | 3.60 | 0.188 |
| 1030G | 107,100 | 4,400 | 4.125 | 1.50 | 85 | 95 | 0.80 | 9.44 | 7.37 | 3.59 | 6.00 | 7.10 | 0.86 | 3.30 | 4.20 | 0.188 |
| 1035G | 163,800 | 3,900 | 4.875 | 2.00 | 135 | 150 | 1.20 | 11.00 | 8.63 | 4.19 | 7.00 | 8.32 | 1.12 | 3.84 | 5.10 | 0250 |
| 1040G | 270.900 | 3,600 | 5.750 | 2.50 | 195 | 215 | 2.00 | 12.50 | 9.75 | 4.75 | 8.25 | 9.66 | 1.12 | 4.38 | 5.70 | 0250 |
| 1045G | 371,700 | 3,200 | 6.750 | 3.00 | 280 | 300 | 2.30 | 13.62 | 10.93 | 5.31 | 9.25 | 10.79 | 1.12 | 4.84 | 6.50 | 0.312 |
| 1050G | 500,900 | 2,900 | 7.375 | 3.50 | 390 | 420 | 3.90 | 15.31 | 12.37 | 6.03 | 10.00 | 12.04 | 1.50 | 5.54 | 7.20 | 0.312 |
| 1055G | 655,200 | 2,650 | 8,250 | 4.00 | 525 | 550 | 4.90 | 16.75 | 13.56 | 6.62 | 11.00 | 13.16 | 1.50 | 6.22 | 8.00 | 0.312 |
| 1060G | 800100 | 2450 | 9.125 | 4.5 | _ | 675 | 7 | 18 | 15.13 | 7.41 | 12 | 14.41 | 1 | 6.66 | 9 | 0.312 |
Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.
Company main products are: all kinds of couplings for machinery industry all over the word , such as radial elastic coupling, tyred coupling, universal coupling, drum gear coupling, plum flower form elastic coupling, rigid coupling oldham coupling, roller chain coupling, diaphragm coupling, coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel pin coupling, pump shaft coupling, etc..
The concepts of our company is live on quality and develop on honor. The coupling has the advantage of high quality, low price, complete product models.Our company will be your best choice, and we look forward to cooperate with you.
