Flexible Gear Coupling
>
|
| Place of Origin | cangzhou、china |
| Brand Name | jude |
| Certification | CE、ISO |
| Model Number | NL6 |

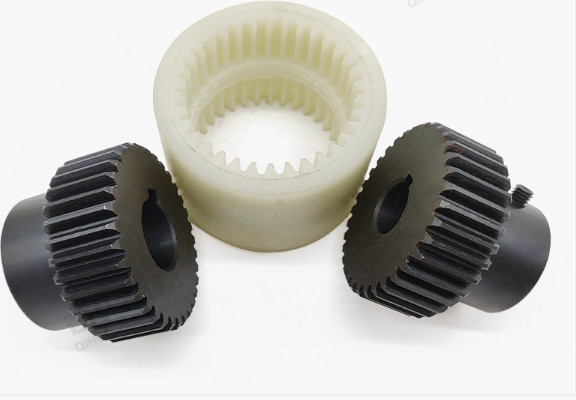

NL Nylon Sleeve Pin Gear Flexible Coupling for flexible drive shaft and the axial radial displacement and angle displacement of large, drumgear coupling belongs to flexible coupling, with radial, axial and angular and axis deviation compensation ability, and has the advantages of simple structure, convenient maintenance, easy installation, low noise, transmission power loss of small, long life etc..
The outer teeth of the toothed coupling are divided into two kinds: straight teeth and drum teeth. Drum gear couplings can allow larger angular displacement (relative to straight tooth coupling), which can improve the contact conditions of teeth, increase the ability of transmitting torque, and extend the service life. The NL Nylon Sleeve Pin Gear Flexible Couplinghas small radial size and large load capacity. It is usually used for shafting transmission under low speed and heavy load conditions. The NL Nylon Sleeve Pin Gear Flexible Coupling with high accuracy and dynamic balance can be used for high-speed transmission, such as the shaft transmission of a gas turbine.
| Size | Torque Tn N.m | Speed n (r/min) | Main Dimension (mm) | Max deviation | Inertia Kg *m2 | Weight Kg | ||||||
| DIA | Length | D | S | L3 | Axial (mm) | Radial (mm) | Angleα° | |||||
| d1 d2 | L 1 L 2 | |||||||||||
| NL1 | 40 | 6000 | 6 8 10 12 14 | 16 20 | 42 | 4 | 30 | 2 | ±0.3 | 1° | 0.25 | 0.85 |
| 25 32 | ||||||||||||
| NL2 | 100 | 10 12 14 16 18 20 22 24 | 25 32 | 55 | 40 | ±0.4 | 0.92 | 1.7 | ||||
| 42 52 | ||||||||||||
| NL3 | 160 | 20 22 24 25 28 | 52 62 | 68 | 46 | 3.1 | 2.6 | |||||
| NL4 | 250 | 28 30 32 35 38 | 62 82 | 85 | 48 | 8.69 | 3.6 | |||||
| NL5 | 315 | 5000 | 32 35 38 40 42 | 82 112 | 96 | 50 | 3 | 2° | 14.28 | 5.5 | ||
| NL6 | 400 | 40 42 45 48 | 82 112 | 100 | 52 | 18.34 | 6.8 | |||||
| NL7 | 630 | 3600 | 45 48 50 55 | 82 112 | 115 | 60 | ±0.6 | 56.5 | 9.8 | |||
| NL8 | 1250 | 48 50 55 60 63 65 | 112 142 | 141 | 72 | 98.55 | 26.5 | |||||
| NL9 | 2000 | 2000 | 60 63 65 70 71 75 80 | 142 172 | 175 | 6 | 93 | 4 | ±0.7 | 370.5 | 37.6 | |
| NL10 | 3150 | 1800 | 70 71 75 80 85 90 95 100 | 142 172 | 220 | 8 | 110 | 1156.8 | 55 | |||
| 212 | ||||||||||||
