Flexible Gear Coupling
>
|
|
| Place of Origin | cangzhou、china |
| Brand Name | jude |
| Certification | CE、ISO |
| Model Number | WGP5 Drum Gear Coupling With Brake Disc 400mm 450mm 500mm |

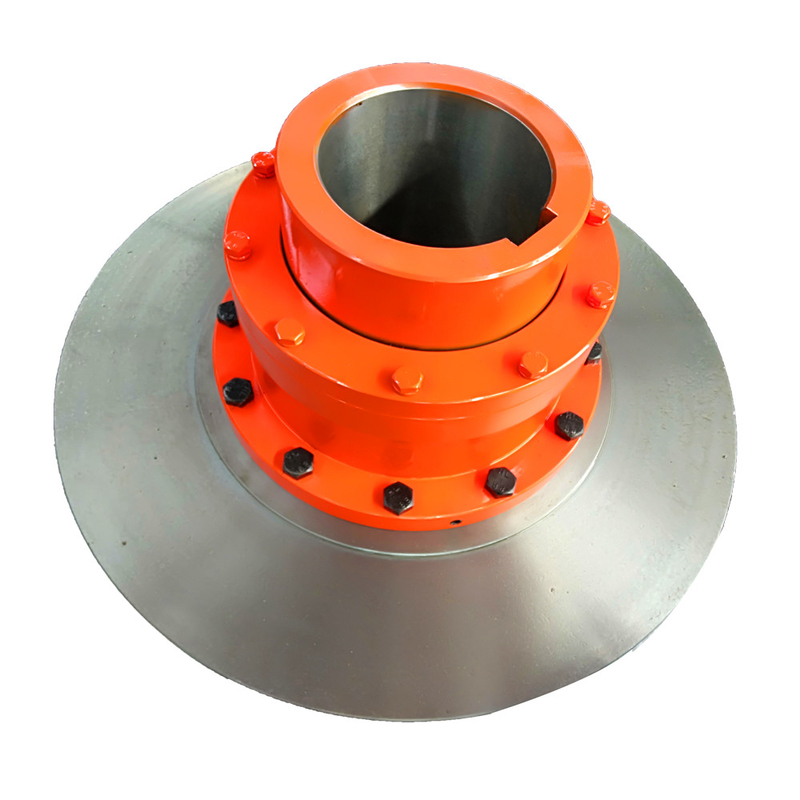

Drum Gear Coupling with Brake Disc (WGP)
With the brake disk and drum gear coupling, the coupling comprises a are used to connect the power input and output shaft of a left sleeve and a right sleeve in the end left sleeve is provided with a drum shaped gear set, a connecting sleeve in the left sleeve periphery through the drum shaped gear tooth and the inner sleeve on the left the engagement end right sleeve is provided with a connecting flange, the connecting flange and the connecting sleeve through the through bolt connection fixation, a brake disc is clamped and fixed between the connecting flange and the connecting sleeve, with brake disk and drum gear coupling has the advantages of simple structure, convenient installation, the brake disc is connected with the right sleeve rigid, brake load and vibration during the braking process undertaken by the right sleeve, and not on the meshing performance of drum gear damage, and brake disc of their stability is also greatly improved, to ensure the reliability of operation.
The Coupling Structure & Parameter
| WGP brake disc Gear Coupling |
||||||||||||||||
| Size | Torque | Speed | Bore Dia | Length | D | D2 | D4 | D0 | B | N | R | F | C | C1 | C2 | |
| Tn | [n] | |||||||||||||||
| N.m | r/min | d1,d2,dz | Y | J1,Z1 | ||||||||||||
| WGP1 | 710 | 7500 | 12.14 | 32 | -- | 122 | 98 | 60 | 315 | 58 | 38 | 2 | 30 | 30 | -- | -- |
| 16.18.19 | 42 | -- | 20 | -- | -- | |||||||||||
| 20.22.24 | 52 | -- | 10 | -- | -- | |||||||||||
| 25.28 | 62 | 44 | 3 | 19 | 18 | |||||||||||
| 30.32.35.38 | 82 | 60 | 3 | 23 | 12 | |||||||||||
| 40.42 | 112 | 84 | 3 | 29 | 12 | |||||||||||
| WGP2 | 1250 | 6700 | 22.24 | 52 | -- | 150 | 118 | 77 | 315 | 68 | 38 | 2.5 | 30 | 20 | -- | -- |
| 25.28 | 62 | -- | 10 | -- | -- | |||||||||||
| 30.32.35.38 | 82 | 60 | 3 | 23 | 16 | |||||||||||
| 40.42.45.48.50.55.56 | 112 | 84 | 3 | 29 | 16 | |||||||||||
| WGP3 | 2500 | 6300 | 22.24 | 52 | -- | 170 | 140 | 90 | 355 | 80 | 49 | 2 | 30 | 33 | -- | -- |
| 25.28 | 62 | -- | 23 | -- | -- | |||||||||||
| 30.32.35.38 | 82 | 60 | 3 | 23 | 16 | |||||||||||
| 40.42.45.48.50.55.56 | 112 | 84 | 3 | 29 | 16 | |||||||||||
| 60.63 | 142 | 107 | 3 | 36 | 16 | |||||||||||
| WGP4 | 4500 | 5600 | 30.32.35.38 | 82 | -- | 200 | 160 | 112 | 90 | 45 | 3 | 30 | 13 | -- | -- | |
| 40.42.45.48.50.55.56 | 112 | 84 | 400 | 3 | 29 | 17 | ||||||||||
| 60.63.65.70.71.75 | 142 | 107 | 450 | 3 | 36 | 17 | ||||||||||
| 80 | 172 | 132 | 500 | 3 | 41 | 17 | ||||||||||
| WGP5 | 7100 | 5300 | 30.32.35.38 | 82 | -- | 225 | 180 | 128 | 100 | 45 | 4 | 30 | 23 | -- | -- | |
| 40.42.45.48.50.55.56 | 112 | 84 | 400 | 3 | 29 | 19 | ||||||||||
| 60.63.65.70.71.75 | 142 | 107 | 450 | 3 | 36 | 19 | ||||||||||
| 80.85.90 | 172 | 132 | 500 | 3 | 41 | 19 | ||||||||||
| WGP6 | 10000 | 5000 | 32.35.38 | 82 | -- | 245 | 200 | 145 | 112 | 44 | 4 | 30 | 35 | -- | -- | |
| 40.42.45.48.50.55.56 | 112 | -- | 450 | 5 | -- | -- | ||||||||||
| 60.63.65.70.71.75 | 142 | 107 | 500 | 5 | 38 | 20 | ||||||||||
| 80.85.90.95 | 172 | 132 | 560 | 5 | 43 | 20 | ||||||||||
| 100 | 212 | 167 | 630 | 5 | 48 | 20 | ||||||||||
| WGP7 | 14000 | 4500 | 32.35.38 | 82 | -- | 272 | 230 | 160 | 122 | 44 | 4 | 30 | 45 | -- | -- | |
| 40.42.45.48.50.55.56 | 112 | -- | 450 | 15 | -- | -- | ||||||||||
| 60.63.65.70.71.75 | 142 | 107 | 500 | 5 | 38 | 20 | ||||||||||
| 80.85.90.95 | 172 | 132 | 560 | 5 | 43 | 20 | ||||||||||
| 100.110 | 212 | 167 | 710 | 5 | 48 | 20 | ||||||||||
| WGP8 | 20000 | 4250 | 55.56 | 112 | -- | 290 | 245 | 176 | 500 | 136 | 44 | 5 | 30 | 29 | -- | -- |
| 60.63.65.70.71.75 | 142 | 107 | 560 | 5 | 38 | 34 | ||||||||||
| 80.85.90.96 | 172 | 132 | 630 | 5 | 43 | 20 | ||||||||||
| 100.110.120.125 | 212 | 167 | 710 | 5 | 48 | 38 | ||||||||||
| WGP9 | 25000 | 4000 | 65.70.71.75 | 142 | 107 | 315 | 265 | 190 | 500 | 140 | 58 | 5 | 30 | 5 | 38 | 28 |
| 80.85.90.95 | 172 | 132 | 630 | 5 | 43 | 28 | ||||||||||
| 100.110.120.125 | 212 | 167 | 710 | 5 | 48 | 28 | ||||||||||
| 130.140 | 252 | 202 | 800 | 5 | 53 | 28 | ||||||||||
| WGP10 | 40000 | 3550 | 75 | 142 | -- | 355 | 300 | 225 | 165 | 58 | 6 | 30 | 28 | -- | -- | |
| 80.85.90.95 | 172 | 132 | 630 | 5 | 43 | 38 | ||||||||||
| 100.110.120.125 | 212 | 167 | 710 | 5 | 48 | 28 | ||||||||||
| 130.140.150 | 252 | 202 | 800 | 5 | 53 | 28 | ||||||||||
| 160 | 302 | 242 | 5 | 63 | 28 | |||||||||||
| WGP11 | 56000 | 3000 | 85.90.95 | 172 | -- | 412 | 345 | 256 | 180 | 58 | 6 | 40 | 15 | -- | -- | |
| 100.110.120.125 | 212 | 167 | 710 | 8 | 51 | 32 | ||||||||||
| 130.140.150 | 252 | 202 | 800 | 8 | 56 | 32 | ||||||||||
| 160.170.180 | 302 | 242 | 900 | 8 | 56 | 32 | ||||||||||
| WGP12 | 80000 | 2800 | 120.125 | 212 | 167 | 440 | 375 | 288 | 210 | 58 | 7 | 40 | 8 | 51 | 45 | |
| 130.140.150 | 252 | 202 | 710 | 8 | 56 | 32 | ||||||||||
| 160.170.180 | 302 | 242 | 800 | 8 | 66 | 32 | ||||||||||
| 190.200 | 352 | 282 | 900 | 8 | 76 | 32 | ||||||||||
| WGP13 | 112000 | 2500 | 145.150 | 252 | 202 | 490 | 425 | 320 | 235 | 58 | 8 | 50 | 8 | 56 | 38 | |
| 160.170.180 | 302 | 242 | 800 | 8 | 66 | 32 | ||||||||||
| 190.200.220 | 352 | 282 | 900 | 8 | 76 | 32 | ||||||||||
| WGP14 | 160000 | 2300 | 160.170.180 | 302 | 242 | 545 | 462 | 362 | 265 | 65 | 9 | 50 | 10 | 68 | 32 | |
| 190.200.220 | 352 | 282 | 800 | 10 | 78 | 32 | ||||||||||
| 240.250.260 | 410 | 330 | 900 | 10 | -- | 10 | ||||||||||
The Brake Disc Specifications
| WGP Brake Disc Size unit:mm | |||||||||
| Dia | Thickness | Height | D5 max | Weight kg | Inertia kg.m² | ||||
| D0 | T | k | S | Ⅰ | Ⅱ | Ⅰ | Ⅱ | Ⅰ | Ⅱ |
| 315 | 15 | 10 | 42 | 180 | 155 | 8.5 | 6.7 | 0.116 | 0.11 |
| 355 | 15 | 10 | 54 | 200 | 175 | 11.4 | 9.9 | 0.192 | 0.178 |
| 400 | 15 | 14 | 54 | 255 | 230 | 15.2 | 12.4 | 0.32 | 0.287 |
| 450 | 15 | 16 | 54 | 305 | 280 | 19.7 | 15.6 | 0.55 | 0.462 |
| 500 | 15 | 18 | 54 | 325 | 295 | 25 | 20 | 0.83 | 0.712 |
| 560 | 15 | 18 | 54 | 350 | 320 | 30.7 | 25.6 | 1.28 | 1.127 |
| 630 | 15 | 20 | 54 | 400 | 360 | 38.8 | 33 | 2.06 | 1.826 |
| 710 | 15 | 20 | 54 | 480 | 450 | 46.5 | 39.4 | 3.32 | 2.912 |
| 800 | 15 | 24 | 70 | 540 | 500 | 67.8 | 52.7 | 5.87 | 4.81 |
| 900 | 15 | 24 | 70 | 600 | 560 | 86.6 | 70.3 | 9.3 | 7.852 |
| 1000 | 15 | 30 | 80 | 620 | 560 | 128.8 | 115.1 | 17.4 | 15.65 |
Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.
Company main products are: all kinds of couplings for machinery industry all over the word , such as radial elastic coupling, tyred coupling, universal coupling, drum gear coupling, plum flower form elastic coupling, rigid coupling oldham coupling, roller chain coupling, diaphragm coupling, coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel pin coupling, pump shaft coupling, etc..
The concepts of our company is live on quality and develop on honor. The coupling has the advantage of high quality, low price, complete product models.Our company will be your best choice, and we look forward to cooperate with you.
