Pin Bush Coupling
>
|
| Place of Origin | cangzhou、china |
| Brand Name | jude |
| Certification | CE、ISO |
| Model Number | HL |

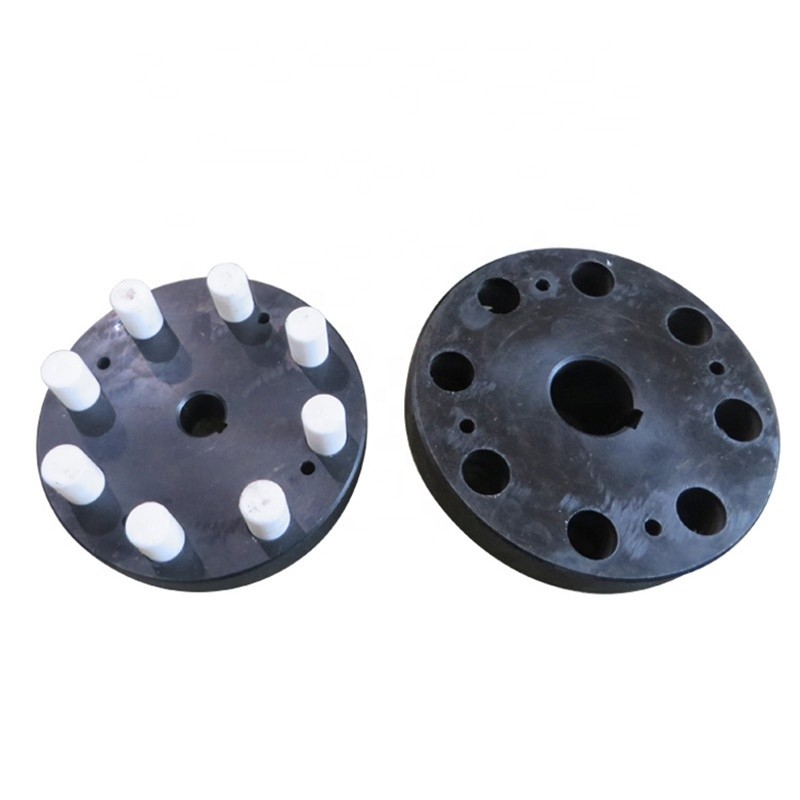

Introduce of HL/LX flexible pin coupling
The HL/LX flexible pin coupling has a larger structure, simple, reasonable, convenient maintenance, symmetrical and interchangeable two sides, long life, and allows larger axial movement. It has cushioning, damping, wear resistance and other properties. The type of shaft hole of HL type elastic pin couplings are cylindrical ( Y ), conical ( Z ) and short cylinder ( J ).
The HL/LX flexible pin coupling is also made into nylon column pin couplings. The main body is made of 45# cast steel by precision casting. The shaft hole and keyway are drawn up, and the elastic pin is made of nylon. There are trace compensation for the two axis offsets, elastic parts are cut at work, and the working reliability is weak. They are suitable for low speed medium speed drive shafts, and are not suitable for working conditions with high reliability.
| Model | Tn(N.m) | [n]r/min | d 1 d 2 d z | D | S | Kg.m 2 | Kg | |||||
| Y | Z,J 1 ,Z | |||||||||||
| L | L 1 | L | ||||||||||
| Steel | Iron | Steel | Iron | |||||||||
| HL1 | 160 | 7100 | 12 14 | 12 14 | 32 | 27 | 32 | 90 | 2.5 | 0.0064 | 2 | |
| 16 18 | 16 18 | 42 | 30 | 42 | ||||||||
| 19 | 19 | |||||||||||
| 20 22 | 20 22 | 52 | 38 | 52 | ||||||||
| 24 | ||||||||||||
| HL2 | 315 | 5600 | 20 22 | 20 22 | 52 | 38 | 52 | 120 | 2.5 | 0.253 | 5 | |
| 24 | 24 | |||||||||||
| 25 28 | 25 28 | 62 | 44 | 62 | ||||||||
| 30 32 | 30 32 | 82 | 60 | 82 | ||||||||
| 35 | ||||||||||||
| HL3 | 630 | 5000 | 30 32 | 30 32 | 82 | 60 | 82 | 160 | 2.5 | 0.6 | 8 | |
| 35 38 | 35 38 | |||||||||||
| 40 42 | 40 42 | 112 | 84 | 112 | ||||||||
| 45 48 | ||||||||||||
| HL4 | 1250 | 4000 | 2800 | 40 42 | 40 42 | 112 | 84 | 112 | 195 | 3 | 3.4 | 22 |
| 45 48 | 45 48 | |||||||||||
| 50 55 | 50 55 | |||||||||||
| 56 | 56 | |||||||||||
| 60 63 | 142 | 107 | 142 | |||||||||
| HL5 | 2000 | 3550 | 2500 | 50 55 | 50 55 | 112 | 84 | 112 | 220 | 3 | 5.4 | 30 |
| 56 | 56 | |||||||||||
| 60 63 | 60 63 | 142 | 107 | 142 | ||||||||
| 65 67 | 65 67 | |||||||||||
| 71 75 | ||||||||||||
| HL6 | 3150 | 2800 | 2100 | 60 63 | 60 63 | 142 | 107 | 142 | 280 | 4 | 15.6 | 53 |
| 65 70 | 65 70 | |||||||||||
| 71 75 | 71 75 | |||||||||||
| 80 | 80 | |||||||||||
| 85 | 172 | 132 | 172 | |||||||||
| HL7 | 6300 | 2240 | 1700 | 70 71 | 70 71 | 142 | 107 | 142 | 320 | 4 | 41.1 | 98 |
| 75 | 75 | |||||||||||
| 80 85 | 80 85 | 172 | 132 | 172 | ||||||||
| 90 95 | 90 95 | |||||||||||
| 100 110 | 100 | 212 | 167 | 212 | ||||||||
| HL8 | 10000 | 2120 | 1600 | 80 85 | 80 85 | 172 | 132 | 172 | 360 | 5 | 56.5 | 119 |
| 90 95 | 90 95 | |||||||||||
| 100 110 | 100 110 | 212 | 167 | 212 | ||||||||
| 120 125 | ||||||||||||
| HL9 | 16000 | 1800 | 1250 | 100 110 | 100 110 | 212 | 167 | 212 | 410 | 5 | 133.3 | 197 |
| 120 125 | 120 125 | |||||||||||
| 130 140 | 130 | 252 | 202 | 252 | ||||||||
| HL10 | 25000 | 1560 | 1120 | 110 120 | 110 120 | 212 | 167 | 212 | 480 | 6 | 273.2 | 322 |
| 125 | 125 | |||||||||||
| 130 140 | 130 140 | 252 | 202 | 252 | ||||||||
| 150 | 150 | |||||||||||
| 160 170 | 160 | 302 | 242 | 302 | ||||||||
| 180 | ||||||||||||
| HL11 | 31500 | 1320 | 1000 | 130 140 | 130 140 | 252 | 202 | 252 | 540 | 6 | 555.7 | 520 |
| 150 | 150 | |||||||||||
| 160 170 | 160 170 | 302 | 242 | 302 | ||||||||
| 180 | 180 | |||||||||||
| 190 200 | 190 | 352 | 282 | 352 | ||||||||
| 220 | ||||||||||||
| HL12 | 63000 | 1250 | 950 | 160 170 | 160 170 | 302 | 242 | 302 | 630 | 7 | 902 | 714 |
| 180 | 180 | |||||||||||
| 190 200 | 190 200 | 352 | 282 | 352 | ||||||||
| 220 | 220 | |||||||||||
| 240 250 | 410 | 330 | - | |||||||||
| 260 | ||||||||||||
| HL13 | 100000 | 1120 | 850 | 190 200 | 190 200 | 352 | 282 | 352 | 710 | 8 | 1700 | 1057 |
| 220 | 220 | |||||||||||
| 240 250 | 240 250 | 410 | 330 | - | ||||||||
| 260 | 260 | |||||||||||
| 280 300 | 470 | 380 | - | |||||||||
| HL14 | 160000 | 850 | 630 | 240 250 | 240 250 | 410 | 330 | - | 800 | 8 | 4318 | 1956 |
|
Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.
Company main products are: all kinds of couplings for machinery industry all over the word , such as radial elastic coupling, tyred coupling, universal coupling, drum gear coupling, plum flower form elastic coupling, rigid coupling oldham coupling, roller chain coupling, diaphragm coupling, coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel pin coupling, pump shaft coupling, etc..
The concepts of our company is live on quality and develop on honor. The coupling has the advantage of high quality, low price, complete product models.Our company will be your best choice, and we look forward to cooperate with you.
