Flexible Jaw Coupling
>
|
|
| Place of Origin | cangzhou、china |
| Brand Name | jude |
| Certification | CE、ISO |
| Model Number | SL crossSlider coupling(Q/JL03-2001) |

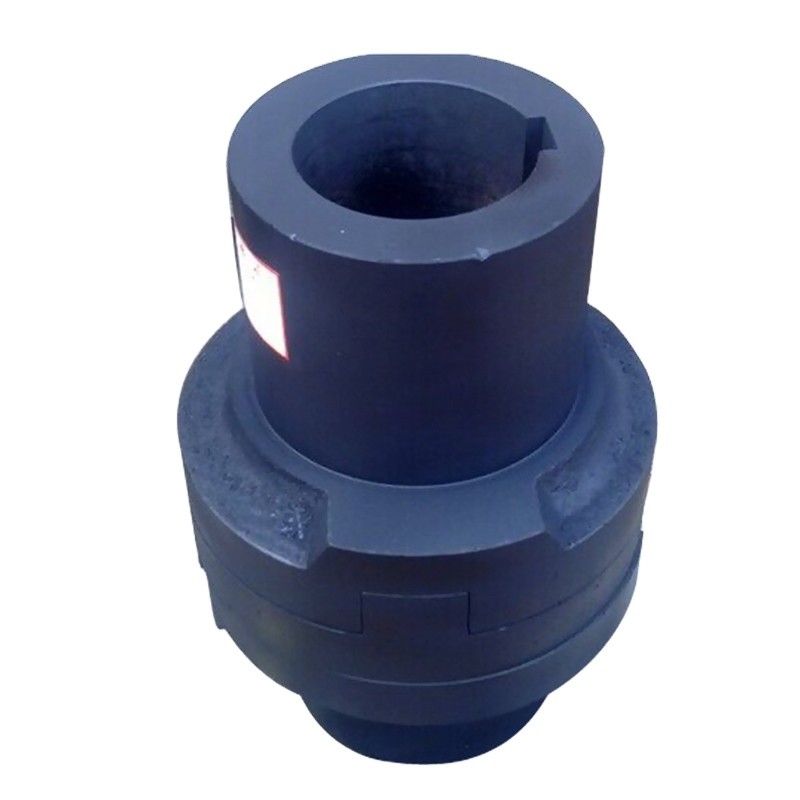

Introduction Of SL Flexible Oldham Coupling
The SL Flexible Oldham Coupling belongs to slider coupling, SL slider coupling the two end surface is provided with a middle slider radial grooves are respectively provided with tenon and half coupling components, the middle to both ends of a sliding block tenon perpendicular to each other, respectively inserted and groove 2.5 coupling, forming a moving pair, if the amount of axial misalignment or deflection, motion slider in the groove sliding, so to add lubricating oil working face groove and the slider, if the two are not concentric, when the speed is high, because the eccentric slider will produce large centrifugal force and wear to the shaft and bring additional load therefore only suitable for low speed the load transfer and occasions.
|
| specification | Nominal torque Tn(N·M) |
Permissible speed [n]r/min |
Diameter of shaft hole d |
D | D1 | L | H | S | Moment of inertia (kg.m 2) |
weight (kg) |
| SL70 | 120 | 250 | 15 ~ 18 | 70 | 32 | 42 | 14 | 0.5 | 0.002 | 1.5 |
| SL90 | 250 | 250 | 20 ~ 30 | 90 | 45 | 52 | 14 | 0.008 | 2.6 | |
| SL100 | 500 | 250 | 36 ~ 40 | 100 | 60 | 70 | 19 | 0.026 | 5.5 | |
| SL130 | 800 | 250 | 45 ~ 50 | 130 | 80 | 90 | 19 | 0.07 | 10 | |
| SL150 | 1250 | 250 | 55 ~ 60 | 150 | 95 | 112 | 19 | 0.14 | 15.5 | |
| SL170 | 2000 | 250 | 65 ~ 70 | 170 | 105 | 125 | 24 | 0.25 | 22.4 | |
| SL190 | 3200 | 250 | 75 ~ 80 | 190 | 110 | 140 | 29 | 0.5 | 31.5 | |
| SL210 | 5000 | 250 | 85 ~ 90 | 210 | 130 | 160 | 33 | 1.0 | 0.9 | 45 |
| SL240 | 8000 | 250 | 95 ~ 100 | 240 | 140 | 180 | 33 | 1.6 | 59.5 | |
| SL260 | 9000 | 250 | 100 ~ 110 | 260 | 160 | 190 | 33 | 2 | 76 | |
| SL280 | 10000 | 100 | 110 ~ 120 | 280 | 170 | 200 | 33 | 3 | 94.3 | |
| SL300 | 13000 | 100 | 120 ~ 130 | 300 | 180 | 210 | 43 | 4.3 | 111 | |
| SL320 | 16000 | 100 | 130 ~ 140 | 320 | 190 | 220 | 43 | 5.7 | 129 | |
| SL340 | 20000 | 100 | 150 | 340 | 210 | 250 | 48 | 8.4 | 162 | |
| SL360 | 32500 | 100 | 160 | 360 | 240 | 280 | 48 | 19.2 | 258 | |
| SL400 | 38700 | 80 | 170 | 400 | 260 | 300 | 48 | 26.1 | 305 | |
| SL460 | 63000 | 70 | 200 | 460 | 300 | 350 | 58 | 62.9 | 560 |
Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.
