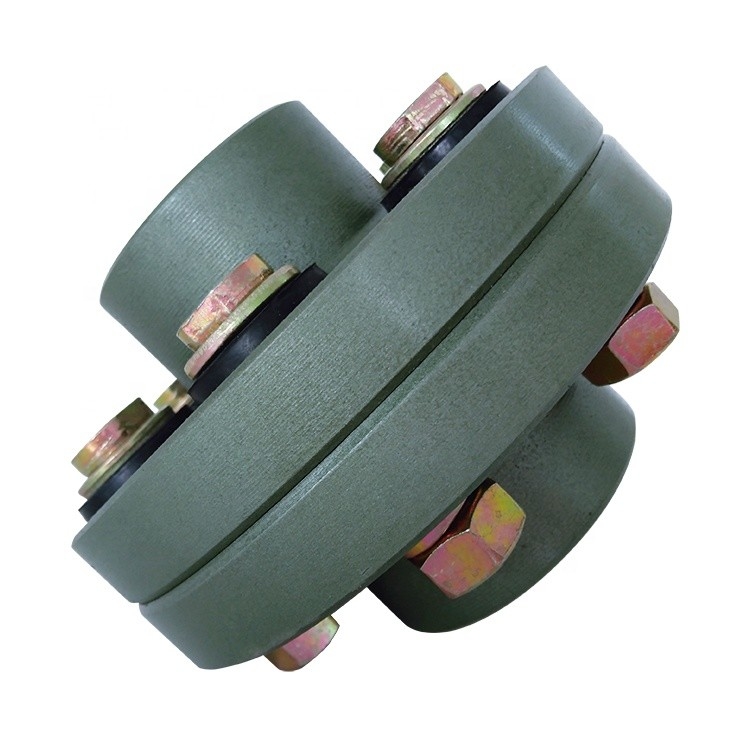

JUDE Standard Flexible Pin Bush Coupling FCL Rubber For Hoists
  • JUDE Standard Flexible Pin Bush Coupling FCL Rubber For Hoists
JUDE Standard Flexible Pin Bush Coupling FCL Rubber For Hoists

JUDE Standard Flexible Pin Bush Coupling FCL Rubber For Hoists

Place of Origin cangzhou、china
Brand Name jude
Certification CE、ISO
Model Number FCL
Product Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Structure:
Gear
Flexible Or Rigid:
Flexible
Standard Or Nonstandard:
Standard
Material:
Steel
Product Name:
FCL Flexible Coupling
Type:
Elastic Sleeve
Body Material:
Cast Iron
Surface Treatment:
Carburizing, Blackening, Electroplating, Quenching.
Heat Treatment:
High Frequency Quenching Heat Treatment
The Radial Displacement:
0.2~0.6mm
Application:
Pumps
MAX Torque:
4-15680
Speed:
1000-4000
MOQ:
1 Set
Port:
Tianjin
High Light:

Hoists Pin Bush Coupling

,

Standard Pin Bush Coupling

,

Flexible Coupling FCL

Product Description

FCL Flexible Rubber Pin Bush Coupling For Hoists



products images

Flexible Couplings Model FCLis widely used for its compact designing,easy installation,convenient maintenance,small size and light weight.As long as the relative displacement between shafts is kept within the specified tolerance,B couplings will operate the best function and have a longer working life.Thus it is greatly demanded in medium and minor power transmission systems driven by moters,such as speed reducers,hoists,compressos,conveyers,spinning and weaving machines and ball mills.


Permittable relative displacement:
Radial displacement:0.2~0.6mm
Angle displacement:0°30′~1°30′



JUDE Standard Flexible Pin Bush Coupling FCL Rubber For Hoists 0



Type Max Torque Max Speed D D1 D2 L C n-M Weight
N.m t/min kg
FCL90 4 4000 90 36 11 28 3 4-M8*50 1.8
FCL100 10 4000 100 40 11 35.5 3 4-M10*56 2.3
FCL112 16 4000 112 46 13 40 3 4-M10*56 3
FCL125 25 4000 125 50 13 45 3 4-M12*64 4
FCL140 50 4000 140 65 13 50 3 6-M12*64 5.5
FCL160 110 4000 160 80 15 56 3 8-M12*64 8
FCL180 157 3500 180 90 15 63 3 8-M12*64 10.5
FCL200 245 3200 200 100 21 71 4 8-M20*85 16.2
FCL224 392 2850 224 115 21 80 4 8-M20*85 22
FCL250 618 2550 250 135 25 90 4 8-M24*100 32
FCL280 980 2300 280 140 34 100 4 8-M24*116 44
FCL315 1568 2050 315 160 41 112 4 10-M24*116 58
FCL355 2450 1800 355 180 60 125 5 8-M30*150 90
FCL400 3920 1600 400 200 60 125 5 10-M30*150 113
FCL450 6174 1400 450 224 65 140 5 12-M30*150 145
FCL560 9800 1150 560 250 85 160 5 14-M30*150 229
FCL630 15680 1000 630 280 95 180 5 18-M30*150 296

JUDE Standard Flexible Pin Bush Coupling FCL Rubber For Hoists 1JUDE Standard Flexible Pin Bush Coupling FCL Rubber For Hoists 2JUDE Standard Flexible Pin Bush Coupling FCL Rubber For Hoists 3JUDE Standard Flexible Pin Bush Coupling FCL Rubber For Hoists 4JUDE Standard Flexible Pin Bush Coupling FCL Rubber For Hoists 5

Packaging & Shipping

JUDE Standard Flexible Pin Bush Coupling FCL Rubber For Hoists 6

Company Information

JUDE Standard Flexible Pin Bush Coupling FCL Rubber For Hoists 7

Tags:

OEM Pin Bush Coupling,

FCL Cast Iron Flexible Coupling,

FCL Flexible Coupling Elastic Sleeve
