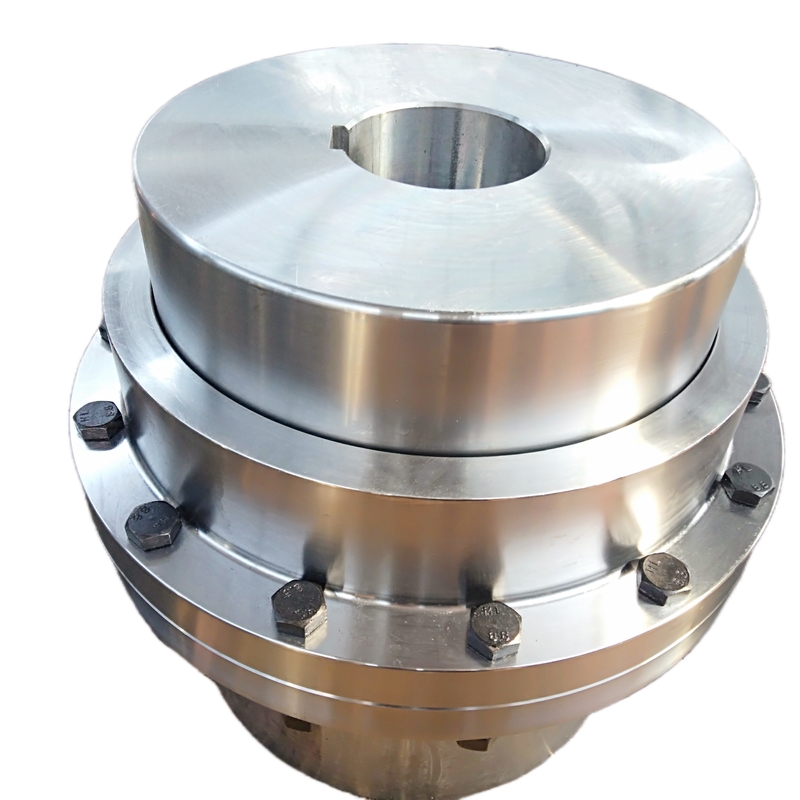

Flexible Gear Coupling
>
|
|
| Place of Origin | cangzhou、china |
| Brand Name | jude |
| Certification | CE、ISO |
| Model Number | GIICL |
Gear couplings are designed to transmit torque between two shafts that are not collinear. They typically consist of two flexible joints—one fixed to each shaft—which are connected by a spindle, or third shaft. The gear coupling connects the drive motor to the gearbox in hoist mechanisms, but it can also connect the gearbox directly to smaller wire rope drums using a flanged half.
In terms of their design, gear couplings transmit torque via hubs with crowned gear teeth that are in permanent mesh with the straight gear teeth of the sleeves—a design that provides the highest torque transmission for the smallest size. They also run at high speeds, conform to the AGMA bolting pattern and compensate for angular, radial and axial shaft misalignment.
| Size | Torque Tn N-m | Speed [n] r/min | Bore | Length | D | H | A | C | Rotational inertia kg.m2 | Lube mL | Weight Kg |
| Y,J1 | |||||||||||
| dl,d2 | L | ||||||||||
| GIICL1 | 355 | 4000 | 14-35 | 38-82 | 103 | 2.0 | 36 | 8 | 0.0035- 0.00375 | 51 | 3.1 |
| GIICL2 | 630 | 4000 | 16-45 | 38-112 | 115 | 2.0 | 42 | 8 | 0.00550- 0.00675 | 70 | 3.5 |
| GIICL3 | 1000 | 4000 | 22-56 | 38-112 | 127 | 2.0 | 44 | 8 | 0.010- 0.0113 | 68 | 7.0 |
| GIICL4 | 1600 | 4000 | 38-65 | 60-142 | 149 | 2.0 | 49 | 8 | 0.02-0.0245 | 87 | 12.2 |
| GIICL5 | 2800 | 4000 | 40-75 | 84-142 | 167 | 2.5 | 55 | 10 | 0.0378- 0.0433 | 125 | 18.0 |
| GIICL6 | 4500 | 4000 | 45-90 | 84-172 | 187 | 2.5 | 56 | 10 | 0.0663- 0.0843 | 148 | 26.5 |
| GIICL7 | 6300 | 3750 | 50-105 | 84-212 | 204 | 3.5 | 60 | 10 | 0.103-0.151 | 175 | 39.2 |
| GIICL8 | 9000 | 3300 | 55-115 | 84-212 | 230 | 3.0 | 67 | 12 | 0.167-0.241 | 268 | 49.7 |
| GIICL9 | 14000 | 3000 | 60-135 | 107-252 | 256 | 3.0 | 69 | 12 | 0.316-0.470 | 310 | 79.6 |
| GIICL10 | 20000 | 2650 | 65-150 | 107-252 | 287 | 3.5 | 78 | 14 | 0.511-0.745 | 472 | 101 |
| GIICL11 | 31500 | 2350 | 70-175 | 107-302 | 325 | 3.5 | 81 | 14 | 1.096-1.588 | 550 | 161 |
| GIICL12 | 45000 | 2100 | 75-200 | 107-352 | 362 | 4.0 | 89 | 16 | 1.623-3.055 | 695 | 213 |
| GIICL13 | 63000 | 1850 | 150-225 | 202-352 | 412 | 4.5 | 98 | 18 | 3.925-4.918 | 1019 | 315 |
| GIICL14 | 100000 | 1650 | 170-250 | 242-410 | 462 | 5.5 | 172 | 22 | 8.025-9.725 | 3900 | 476 |
| GIICL15 | 160000 | 1500 | 190-285 | 282-470 | 512 | 5.5 | 182 | 22 | 14.300- 17.45 | 3700 | 696 |
| GIICL16 | 224000 | 1300 | 220-320 | 282-470 | 580 | 7.0 | 209 | 28 | 23.925-29.1 | 4500 | 913 |
| GIICL17 | 315000 | 1200 | 250-365 | 330-550 | 644 | 7.0 | 198 | 28 | 43.095- 53.725 | 4900 | 1322 |
| GIICL18 | 450000 | 1050 | 280-400 | 380-650 | 726 | 8.0 | 222 | 28 | 78.525- 99.500 | 7000 | 1948 |
| GIICL19 | 630000 | 950 | 300-470 | 380-650 | 818 | 8.0 | 232 | 32 | 136.750- 175.5 | 8900 | 3026 |
Type G20 Standard Flanged Sleeve Double Engagement
For Sizes 1010G thru 1055G,
| Size ① | Torque Rating (Ib-in)④ | Allow Speed RPM⑤ | Max Bore ⑥ | Min Bore ⑦ | CpIgWtWith No Bore (lb) | Lube Wt (lb) | A | B | C | D | F | H | J | M | GAP | |
| G10 | G20 | |||||||||||||||
| 1010G | 10,080 | 8,000 | 1.875 | 0.50 | 9 | 10 | 0.09 | 4.56 | 3.50 | 1.69 | 2.70 | 3.30 | 0.55 | 1.53 | 2.00 | 0.125 |
| 1015G | 20,790 | 6,500 | 2.375 | 0.75 | 17 | 20 | 0.16 | 6.00 | 4.00 | 1.94 | 3.40 | 4.14 | 0.75 | 1.88 | 2.40 | 0.125 |
| 1020G | 37,800 | 5,600 | 2.875 | 1.00 | 30 | 35 | 0.25 | 7.00 | 5.00 | 2.44 | 4.14 | 4.98 | 0.75 | 2.34 | 3.00 | 0.125 |
| 1025G | 66,150 | 5,000 | 3.625 | 1.25 | 55 | 65 | 0.50 | 8.38 | 6.25 | 3.03 | 5.14 | 6.10 | 0.86 | 2.82 | 3.60 | 0.188 |
| 1030G | 107,100 | 4,400 | 4.125 | 1.50 | 85 | 95 | 0.80 | 9.44 | 7.37 | 3.59 | 6.00 | 7.10 | 0.86 | 3.30 | 4.20 | 0.188 |
| 1035G | 163,800 | 3,900 | 4.875 | 2.00 | 135 | 150 | 1.20 | 11.00 | 8.63 | 4.19 | 7.00 | 8.32 | 1.12 | 3.84 | 5.10 | 0.250 |
| 1040G | 270,900 | 3,600 | 5.750 | 2.50 | 195 | 215 | 2.00 | 12.50 | 9.75 | 4.75 | 8.25 | 9.66 | 1.12 | 4.38 | 5.70 | 0.250 |
| 1045G | 371,700 | 3,200 | 6,750 | 3.00 | 280 | 300 | 2.30 | 13.62 | 10.93 | 5.31 | 9.25 | 1,079 | 1.12 | 4.84 | 6.50 | 0.312 |
| 1050G | 500,900 | 2,900 | 7.375 | 3.50 | 390 | 420 | 3.90 | 15.31 | 12.37 | 6.03 | 10.00 | 12.04 | 1.50 | 5.54 | 7.20 | 0.312 |
| 1055G | 655,200 | 2,650 | 8.250 | 4.00 | 525 | 550 | 4.90 | 16.75 | 13.56 | 6.62 | 11.00 | 13.16 | 1.50 | 6.22 | 8.00 | 0.312 |
| 1060G | 800.100 | 2.450 | 9.125 | 4.50 | 675 | 7.00 | 18.00 | 15.13 | 7.41 | 12.00 | 14.41 | LOO | 6.66 | 9.00 | 0.312 | |
Nanpi county Jude transmission equipment manufacturing co., LTD. is a enterprises that specialized in research and production coupling. Also we can develop new products and bulk-production. With rich experience, professional R&D team and various equipment in coupling, it has superior conditions to satisfied your different requirements.
Company main products are: all kinds of couplings for machinery industry all over the word , such as radial elastic coupling, tyred coupling, universal coupling, drum gear coupling, plum flower form elastic coupling, rigid coupling oldham coupling, roller chain coupling, diaphragm coupling, coupling column elastic sleeve pin couplings, elastic dowel pin, elastic dowel pin coupling, pump shaft coupling, etc..
The concepts of our company is live on quality and develop on honor. The coupling has the advantage of high quality, low price, complete product models.Our company will be your best choice, and we look forward to cooperate with you.
